Violet Wand Repair

So I saw a good deal on Ebay. A violet wand which was in need of some loads of TLC. I’ve only just started looking at what is wrong, but here are some photos.

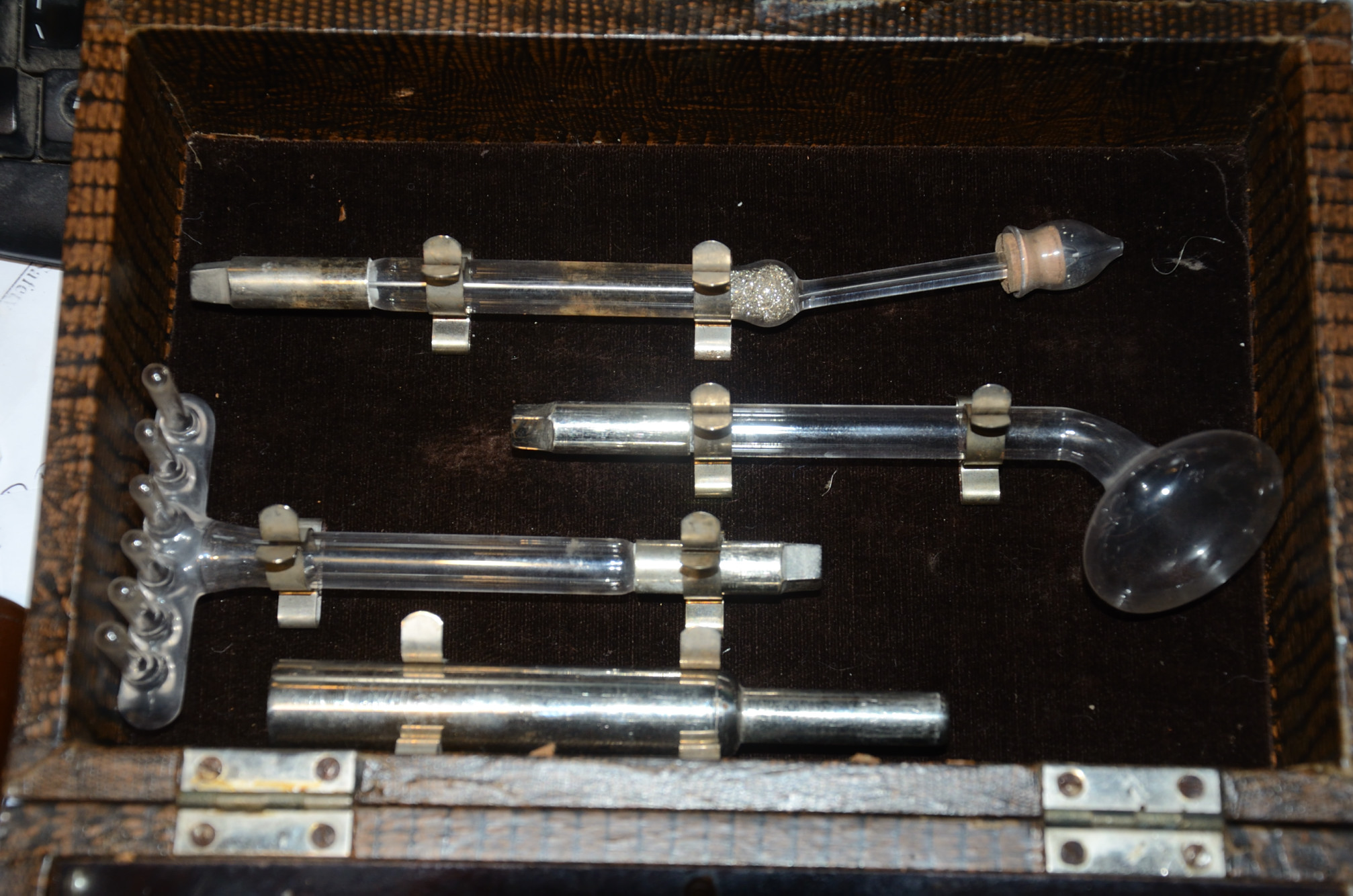

The unit is made by UVRAL which was a UK manufacturer in the 1930’s Interestingly there is a photo of the exact same device badged by EDISWAN here Power House Museum (yes, Edison did make tesla coils with the UK Swan company)

Quote from that page: “Case containing electro-therapeutic device believed to have belonged to the infamous Dr John Bodkin Adams who was a British general practitioner in the 1900s and had numerous patients die under suspicious circumstances.” – So not dangerous at all then…

UVRAL are currently operating under the name Buckleys and still making HV equipment.

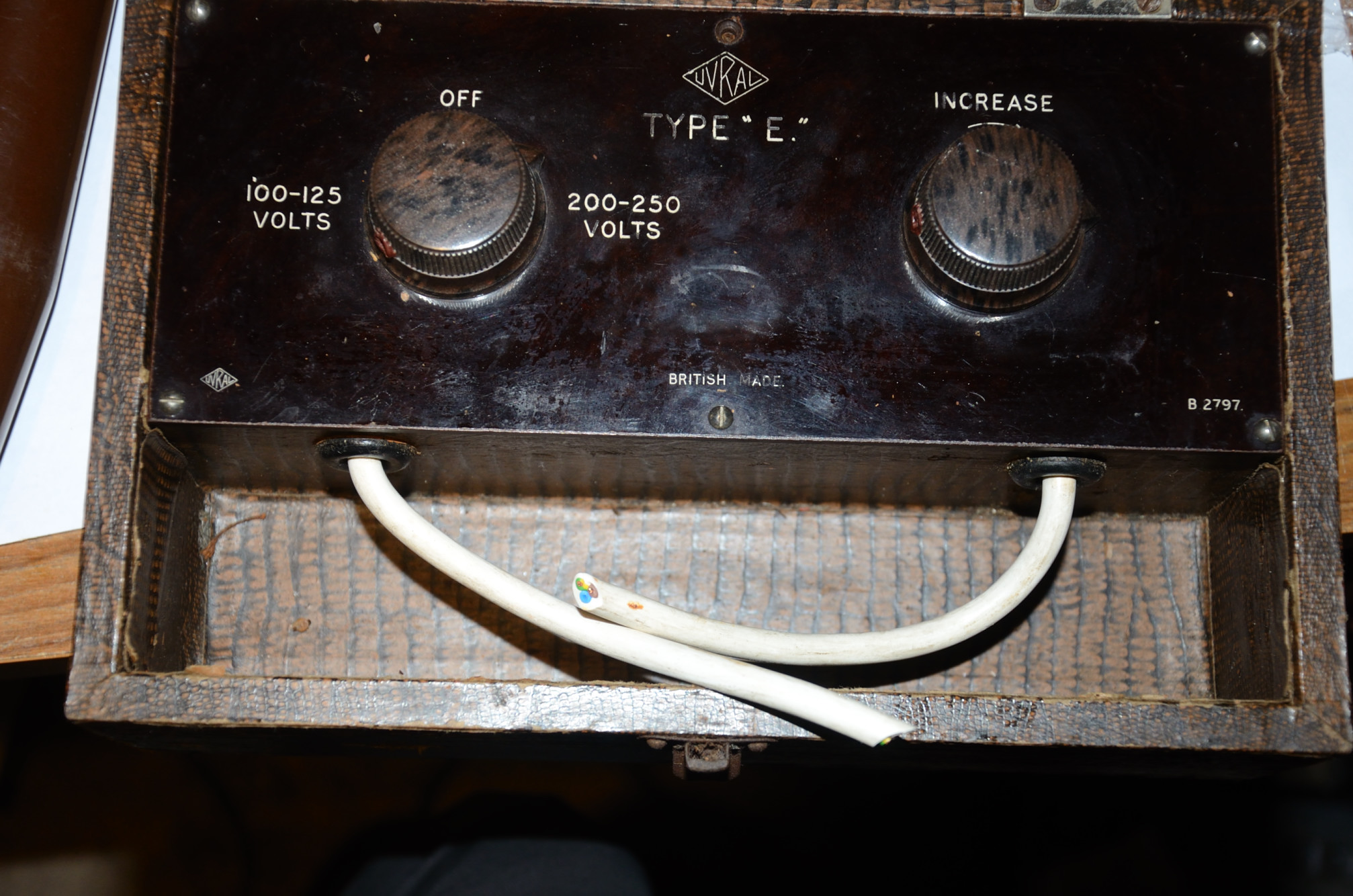

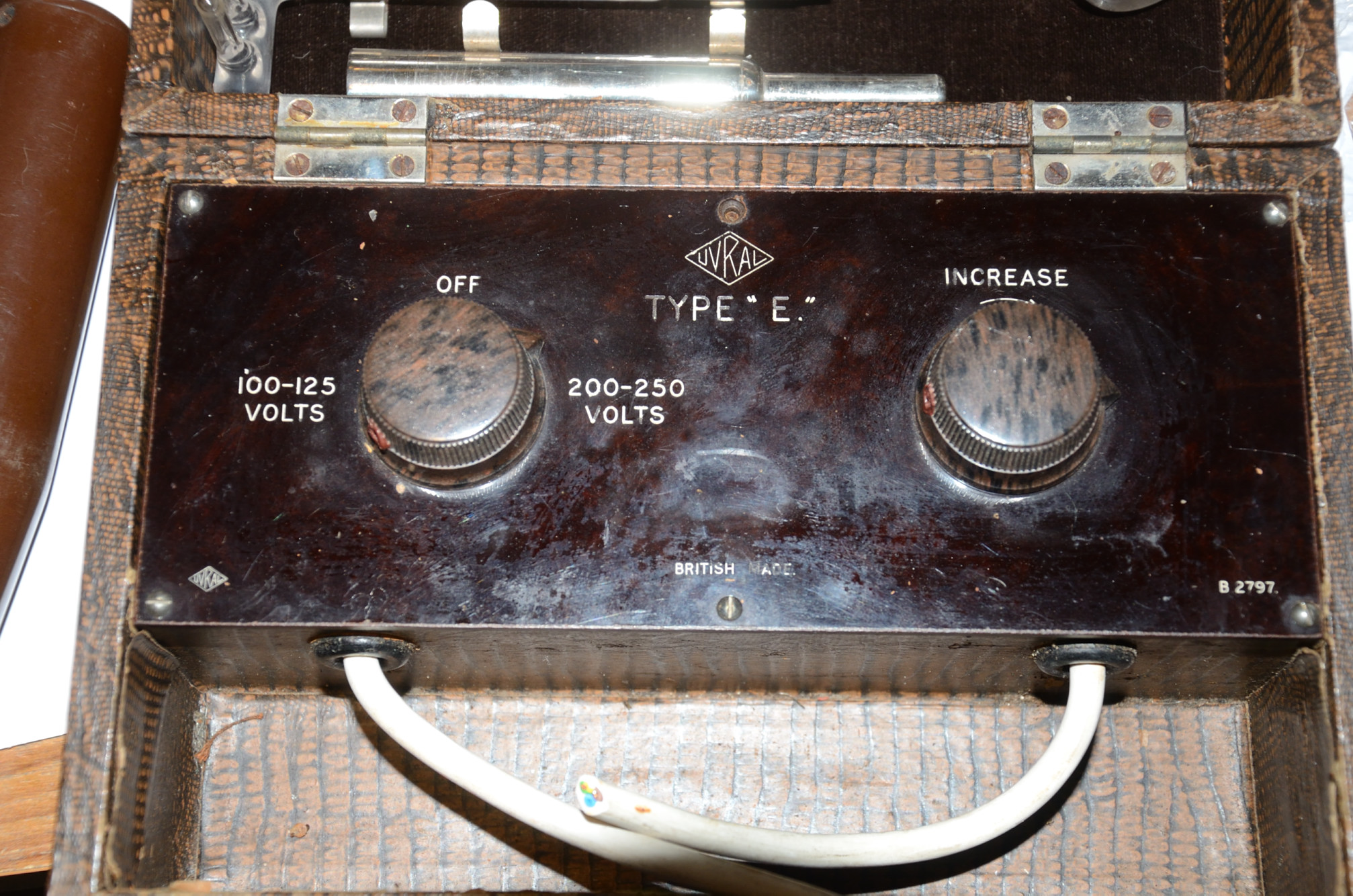

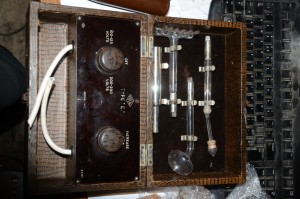

Img_20150728_4971 Img_20150728_4972 Img_20150728_4973 Img_20150728_4974 Img_20150728_4975 Img_20150728_4976

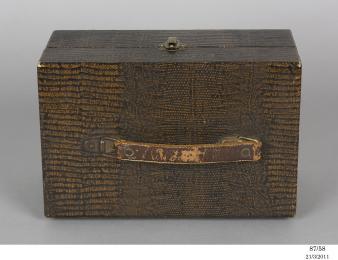

The handle is missing, should look like this

handle

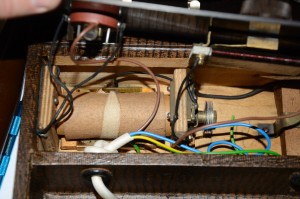

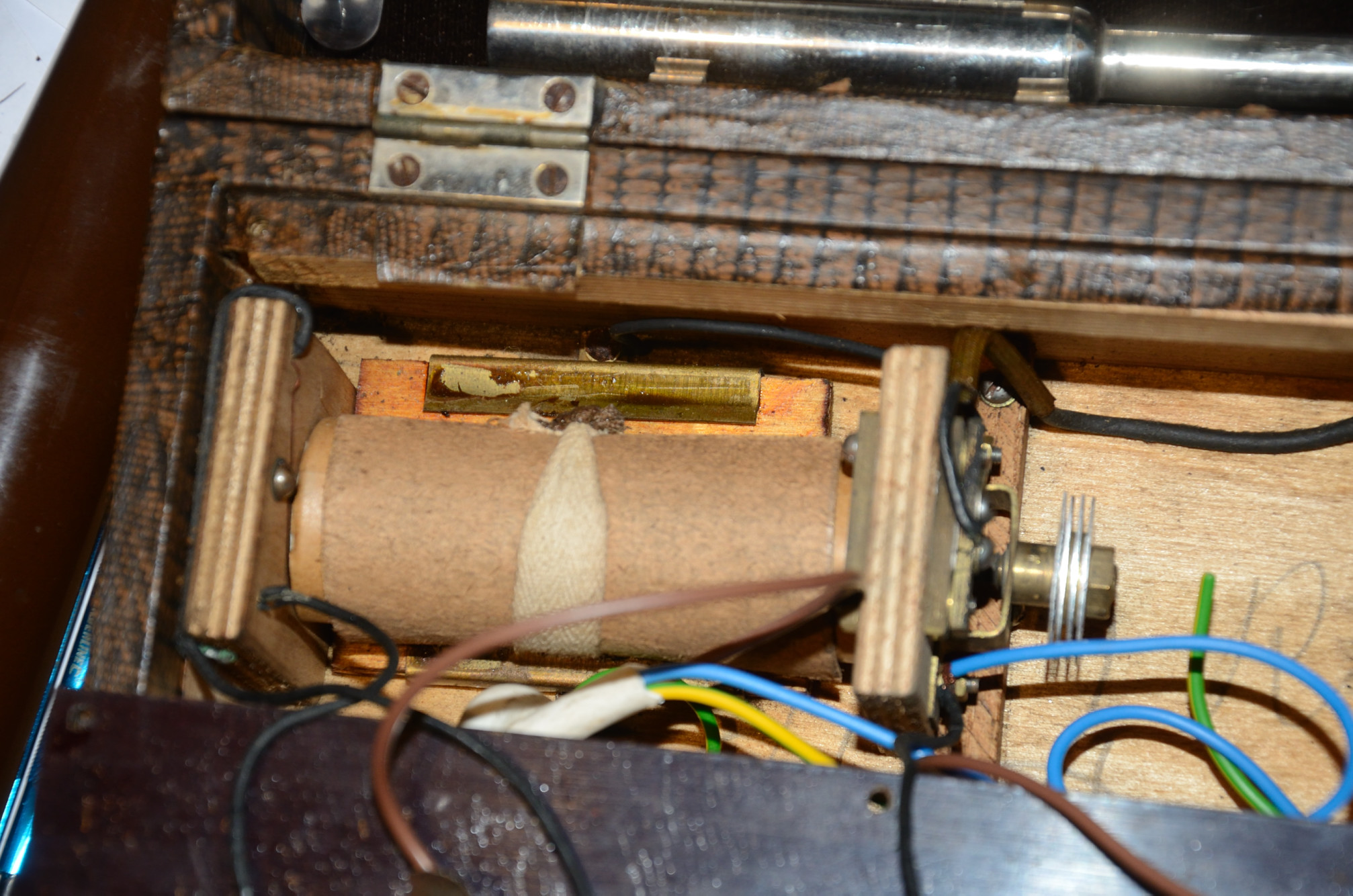

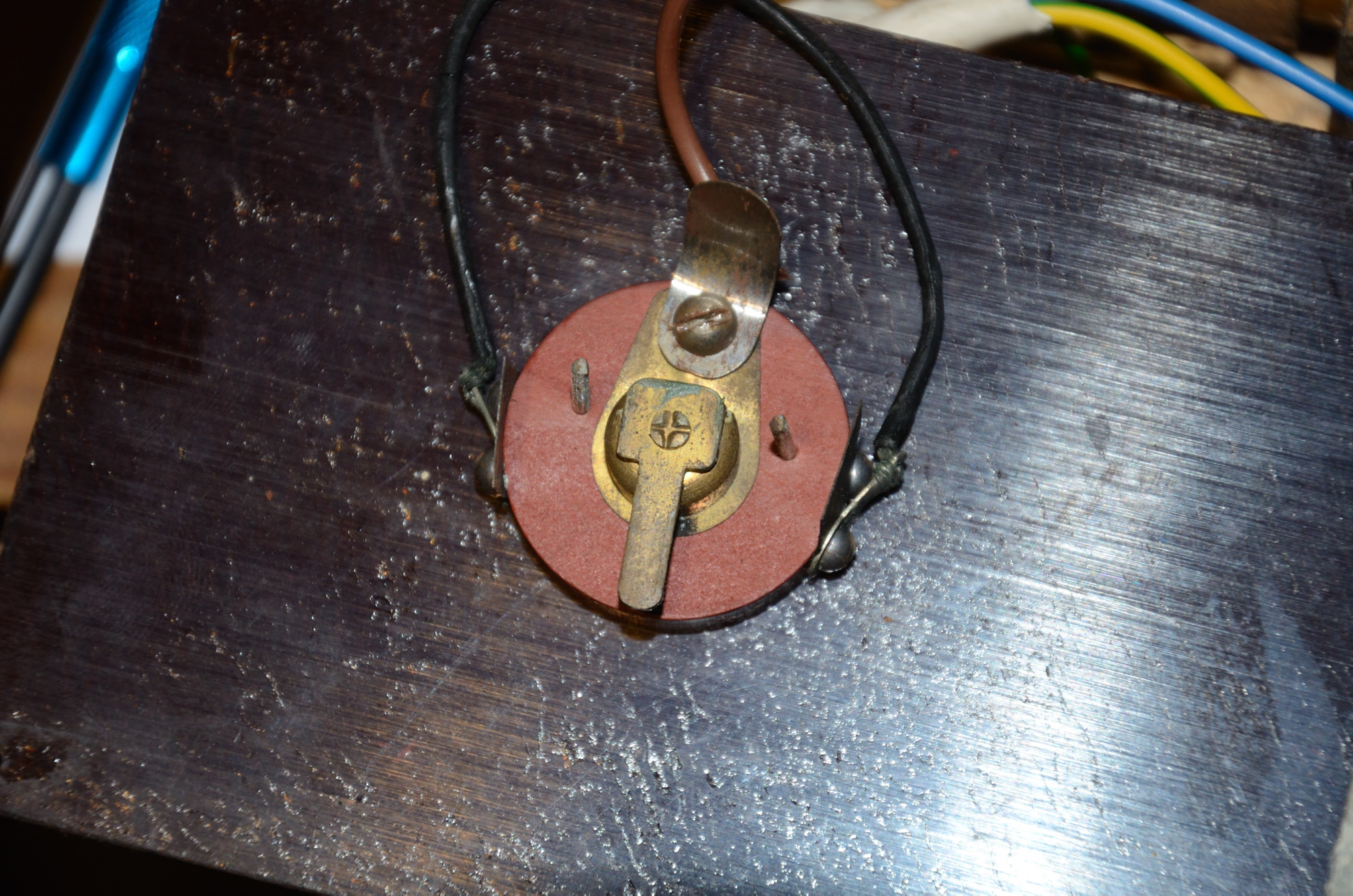

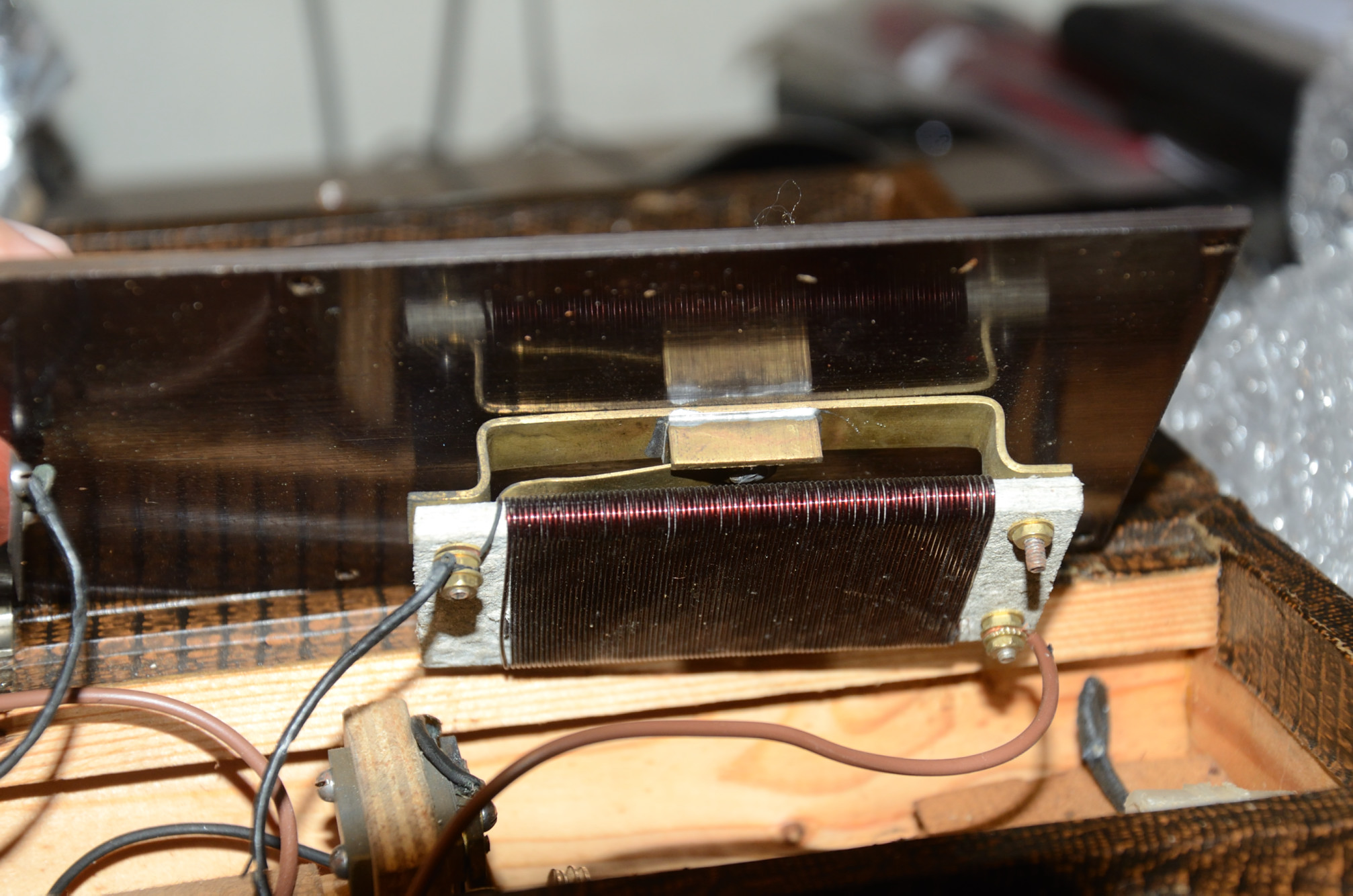

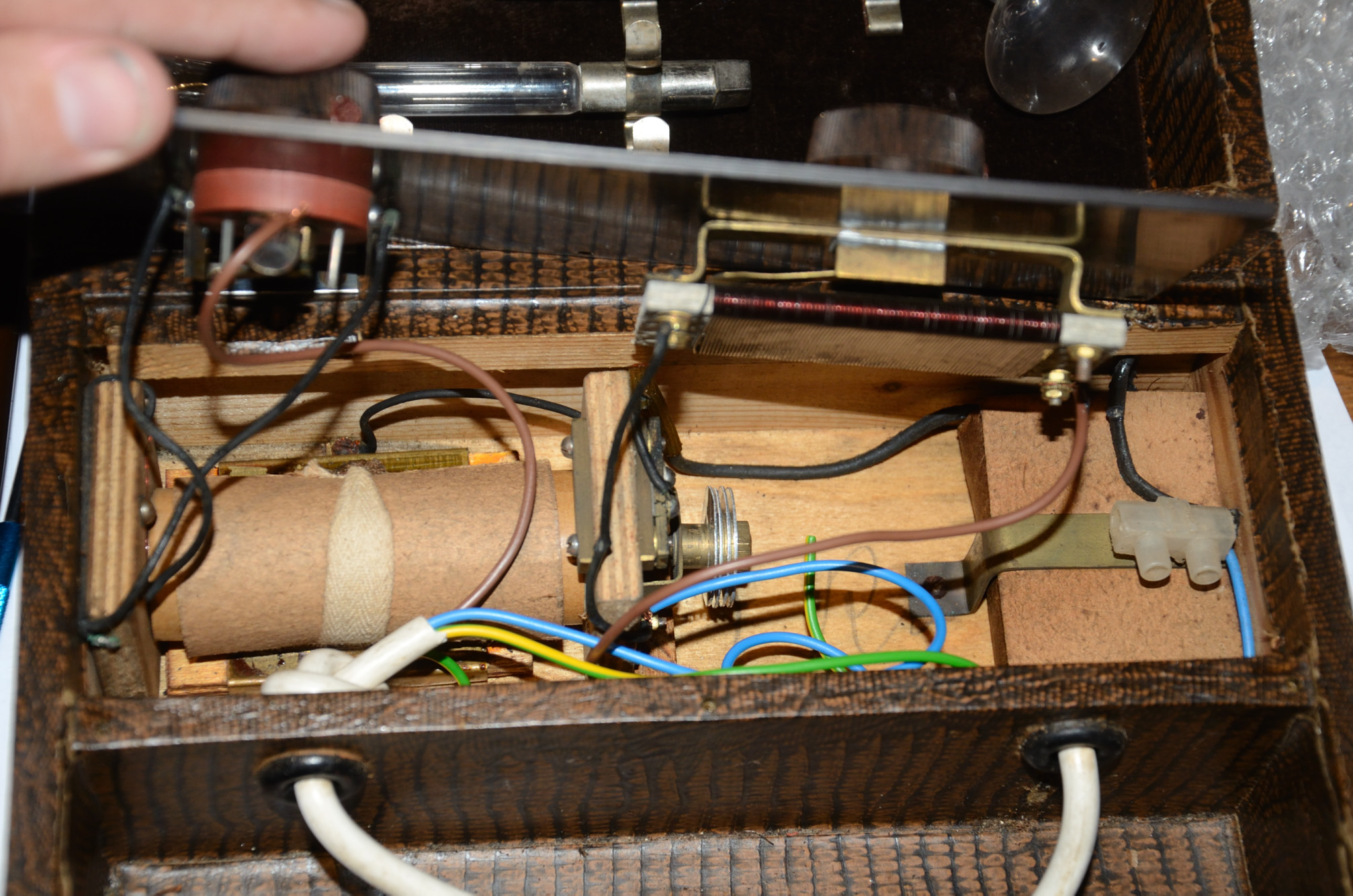

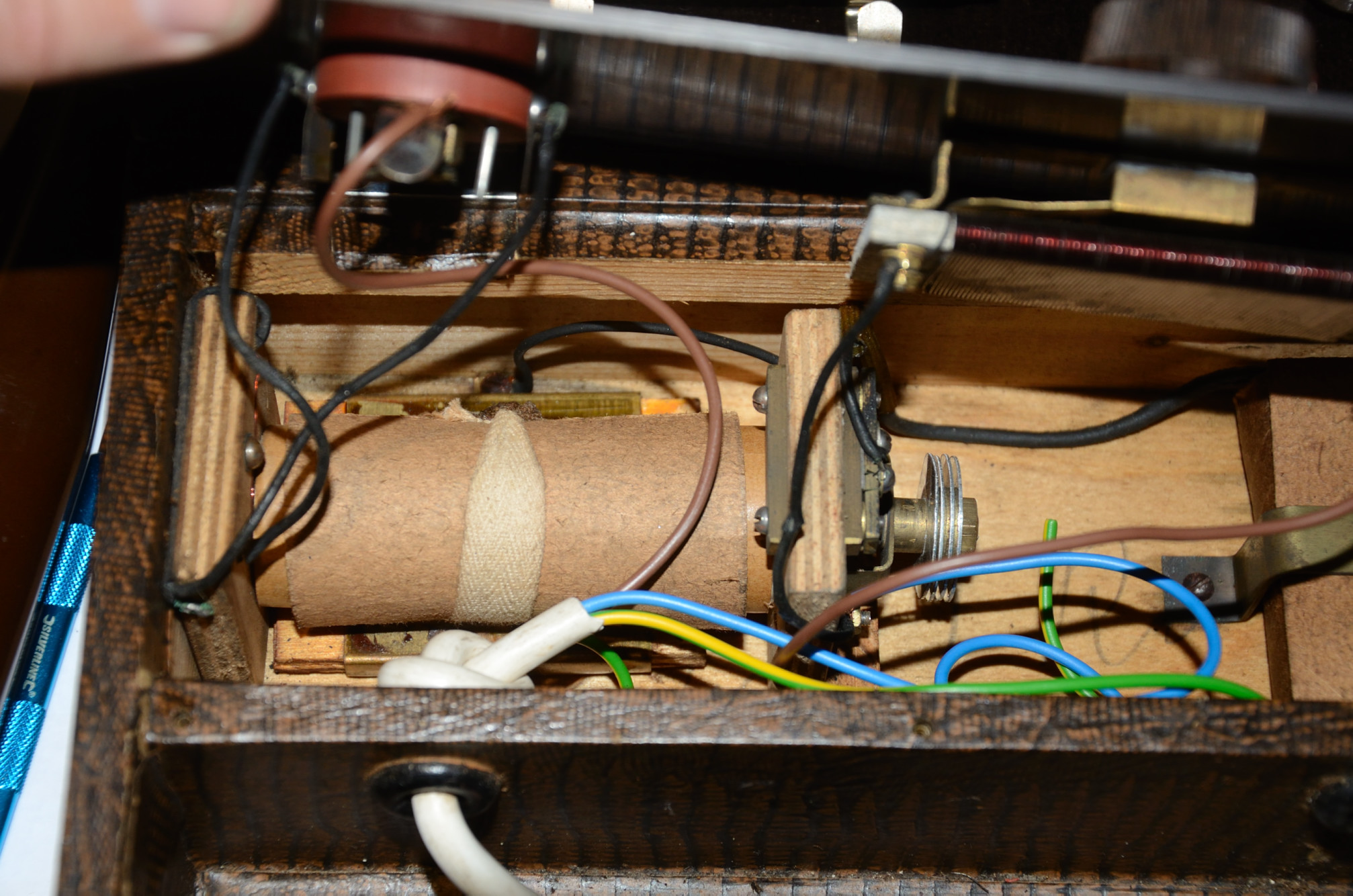

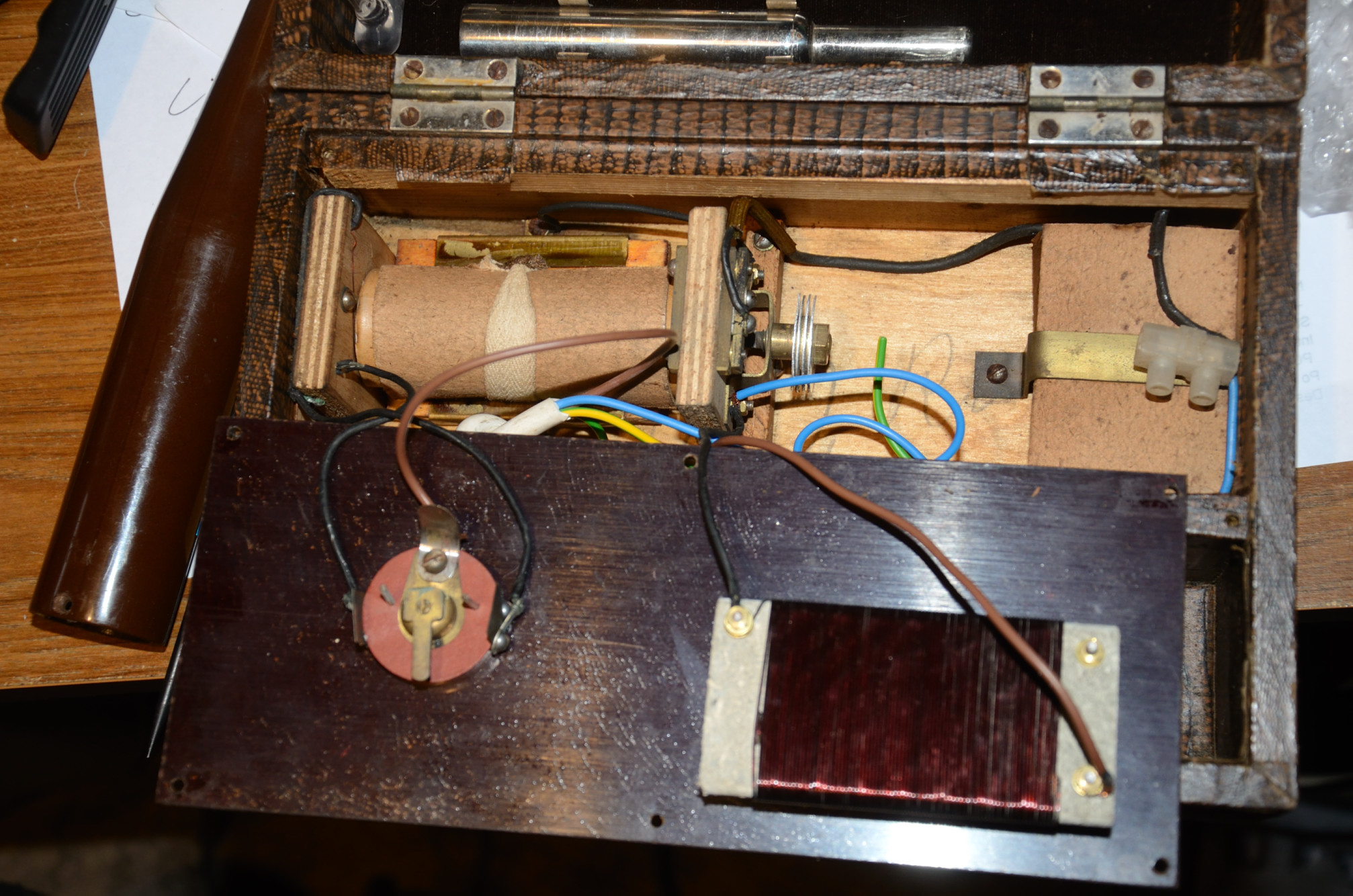

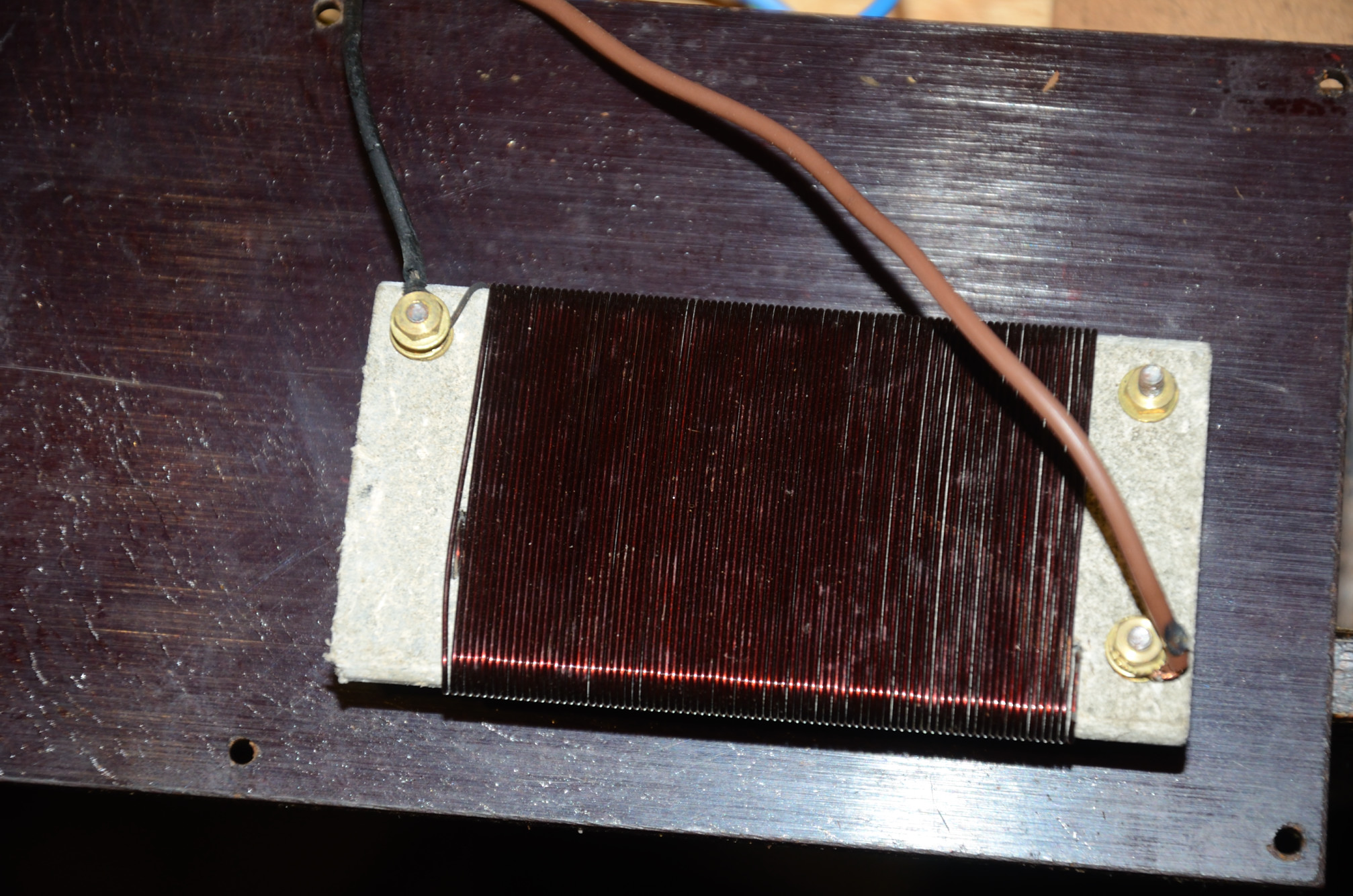

So far, all of the wire needs to be replaced including the deliberately cut cords from the previous attempt to get it working. They are all rubber coated and the rubber is very brittle.

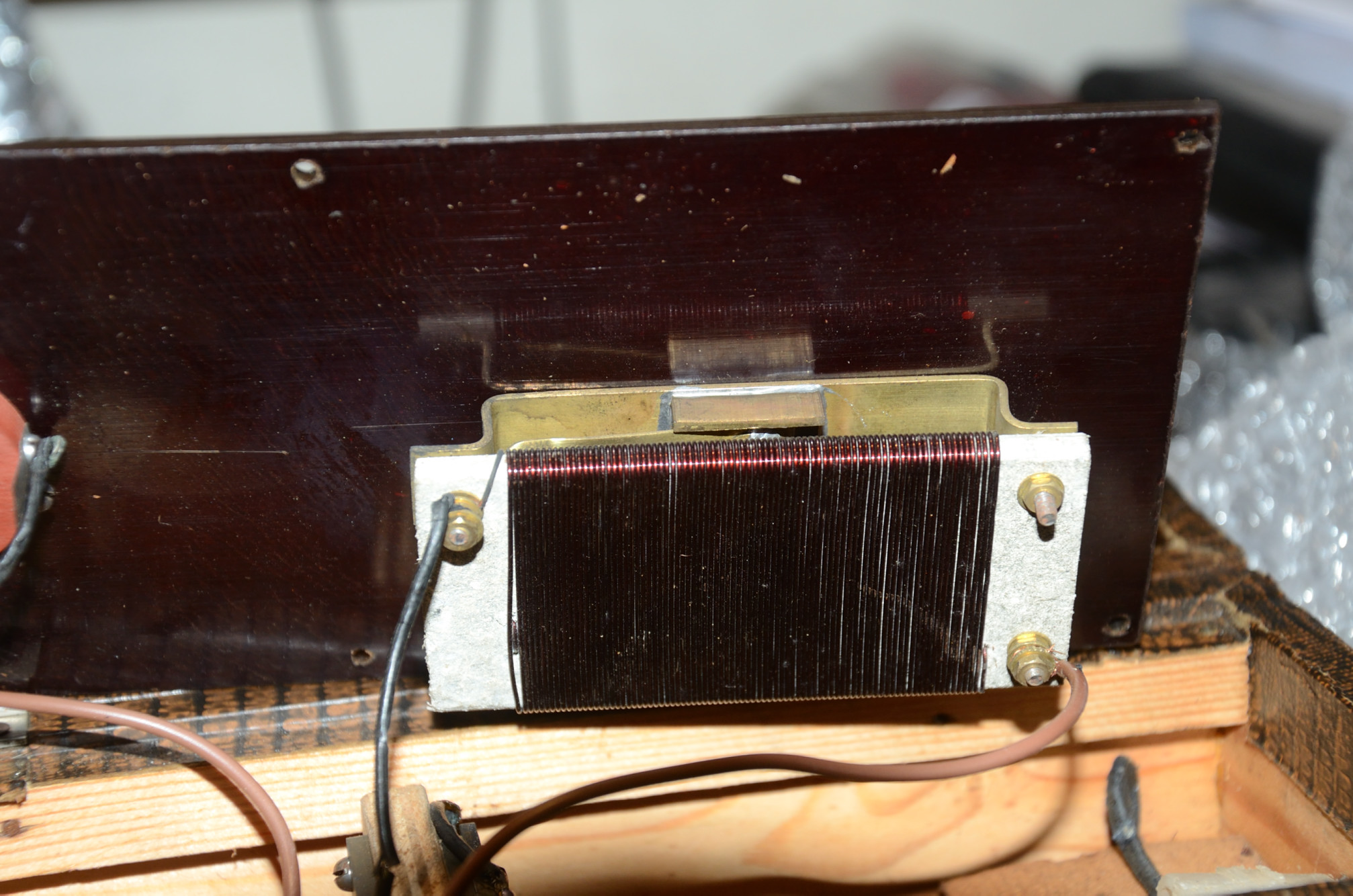

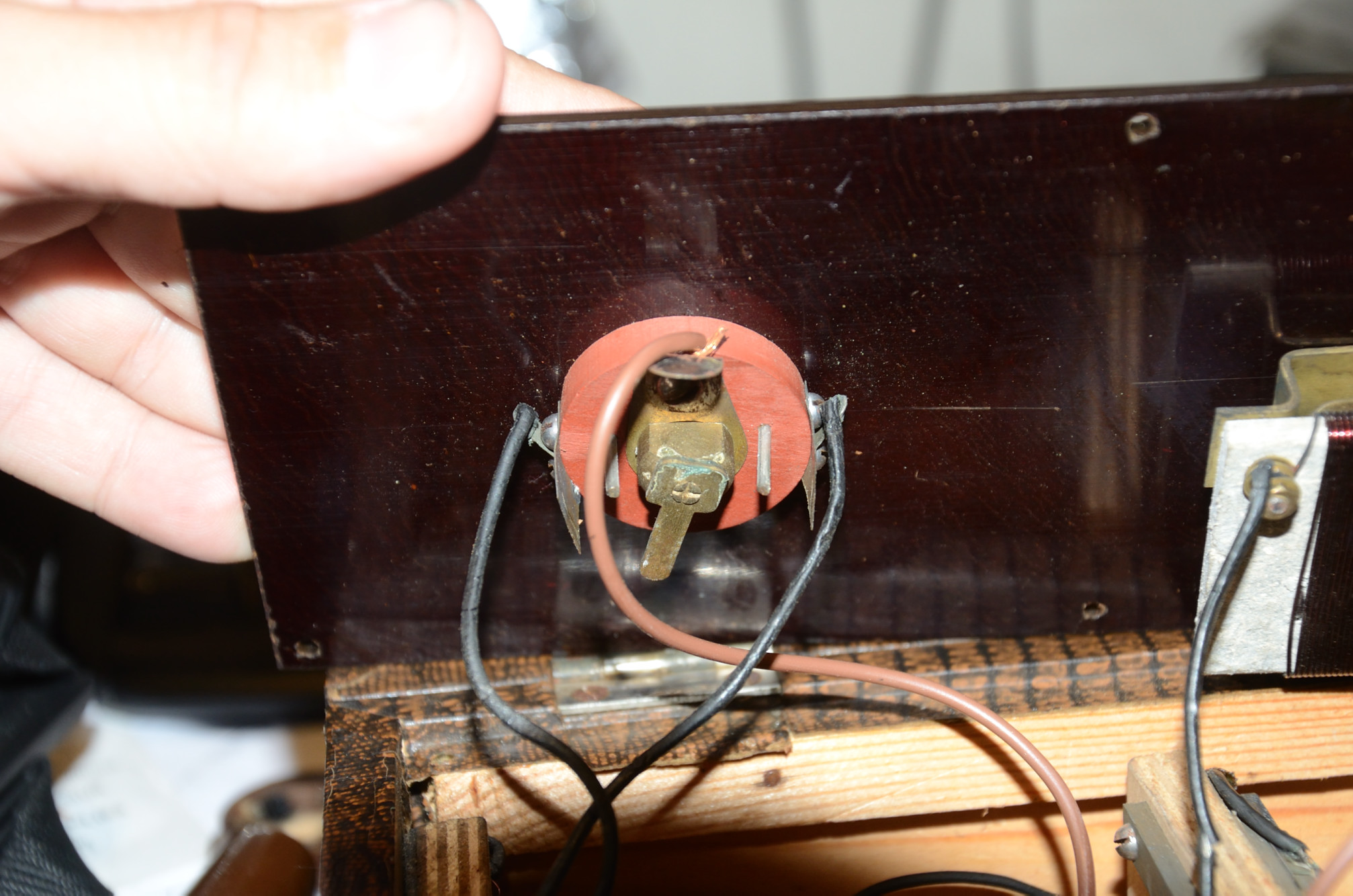

Img_20150728_4989 Img_20150728_4993 Img_20150728_4992 Img_20150728_4990 Img_20150728_4988 Img_20150728_4987 Img_20150728_4986 Img_20150728_4985 Img_20150728_4984

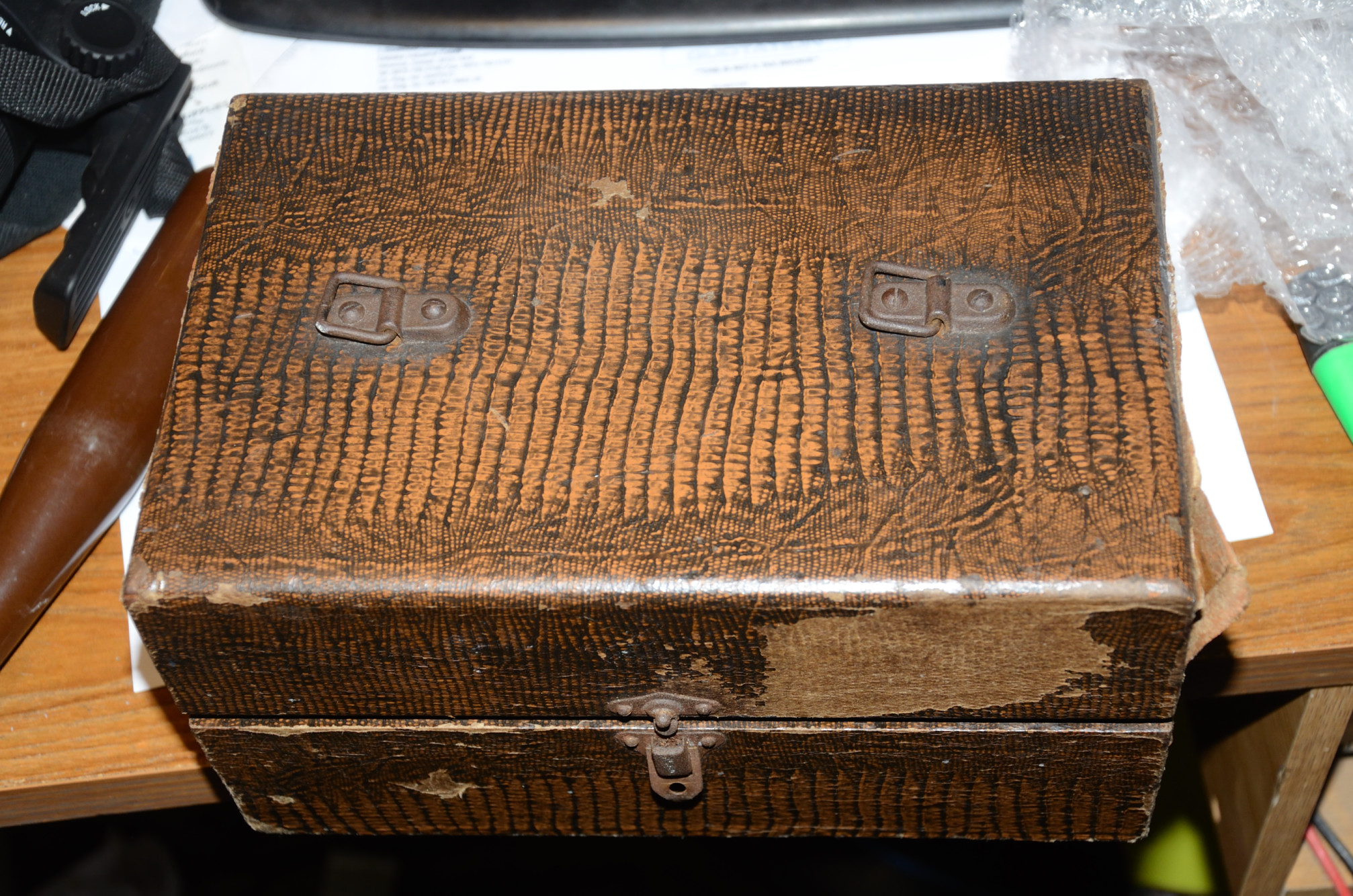

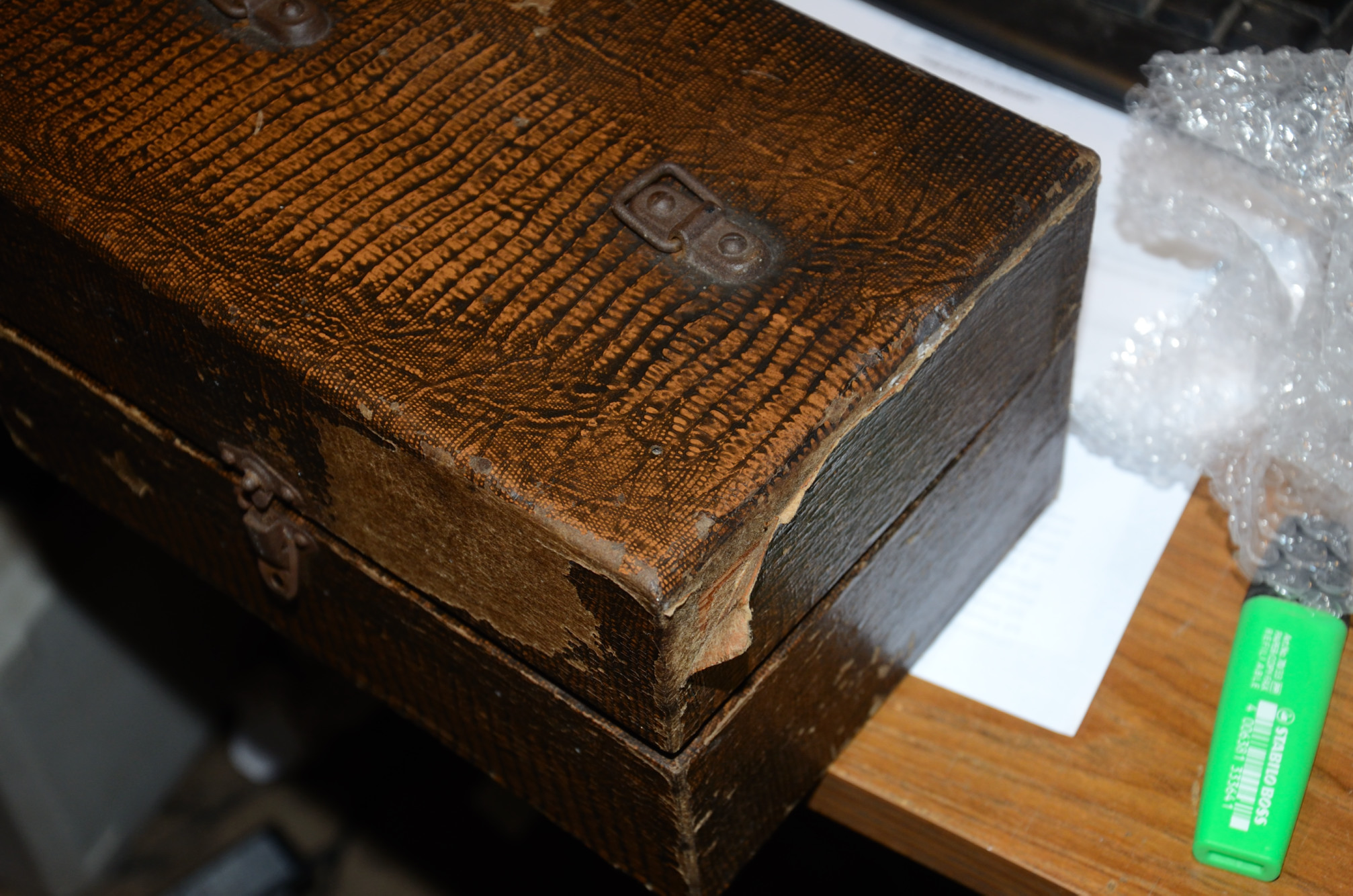

The case and wand look water damaged, no sure if this is just time and moisture, or if it has got properly wet at some time in its history.

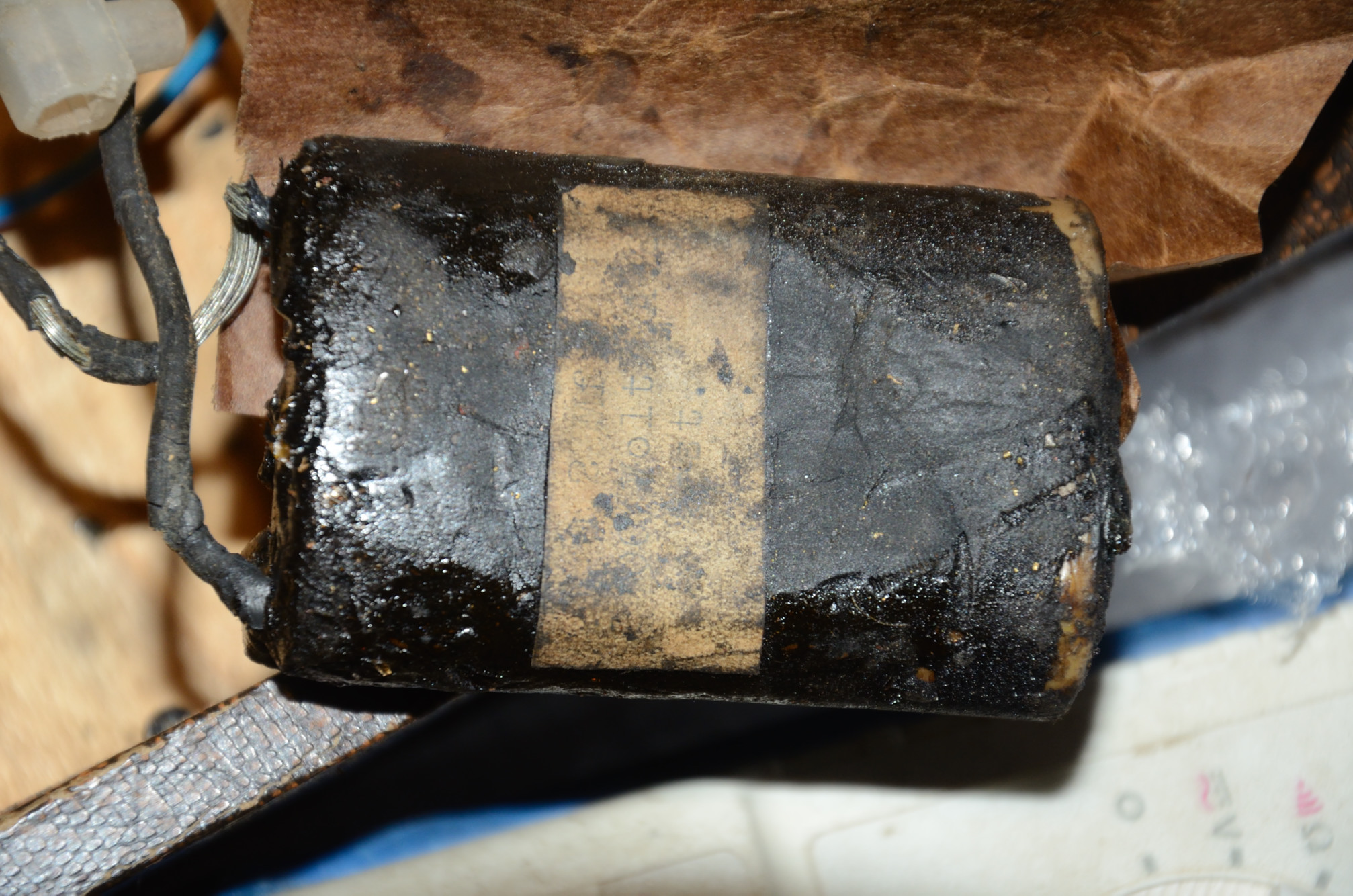

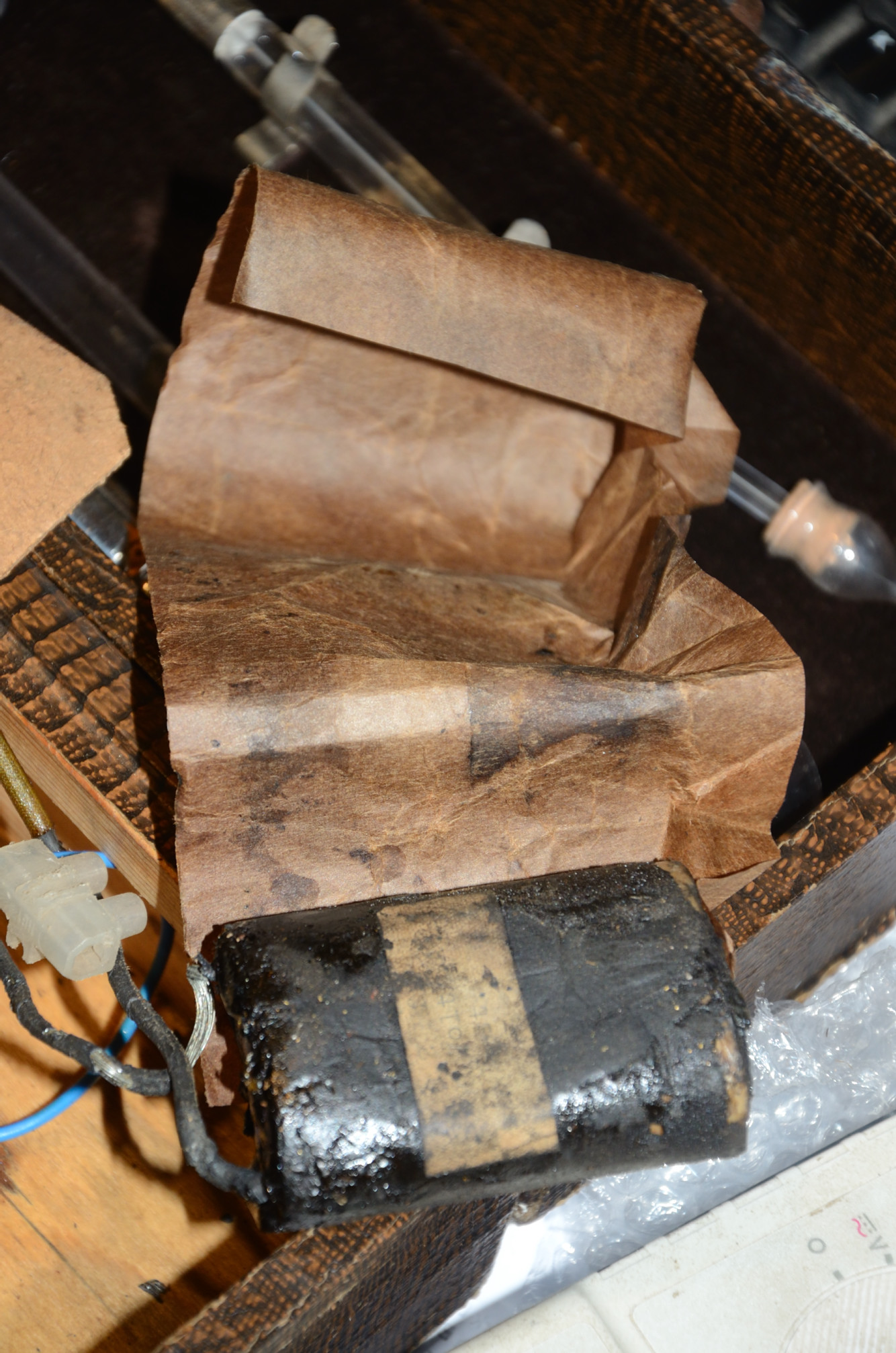

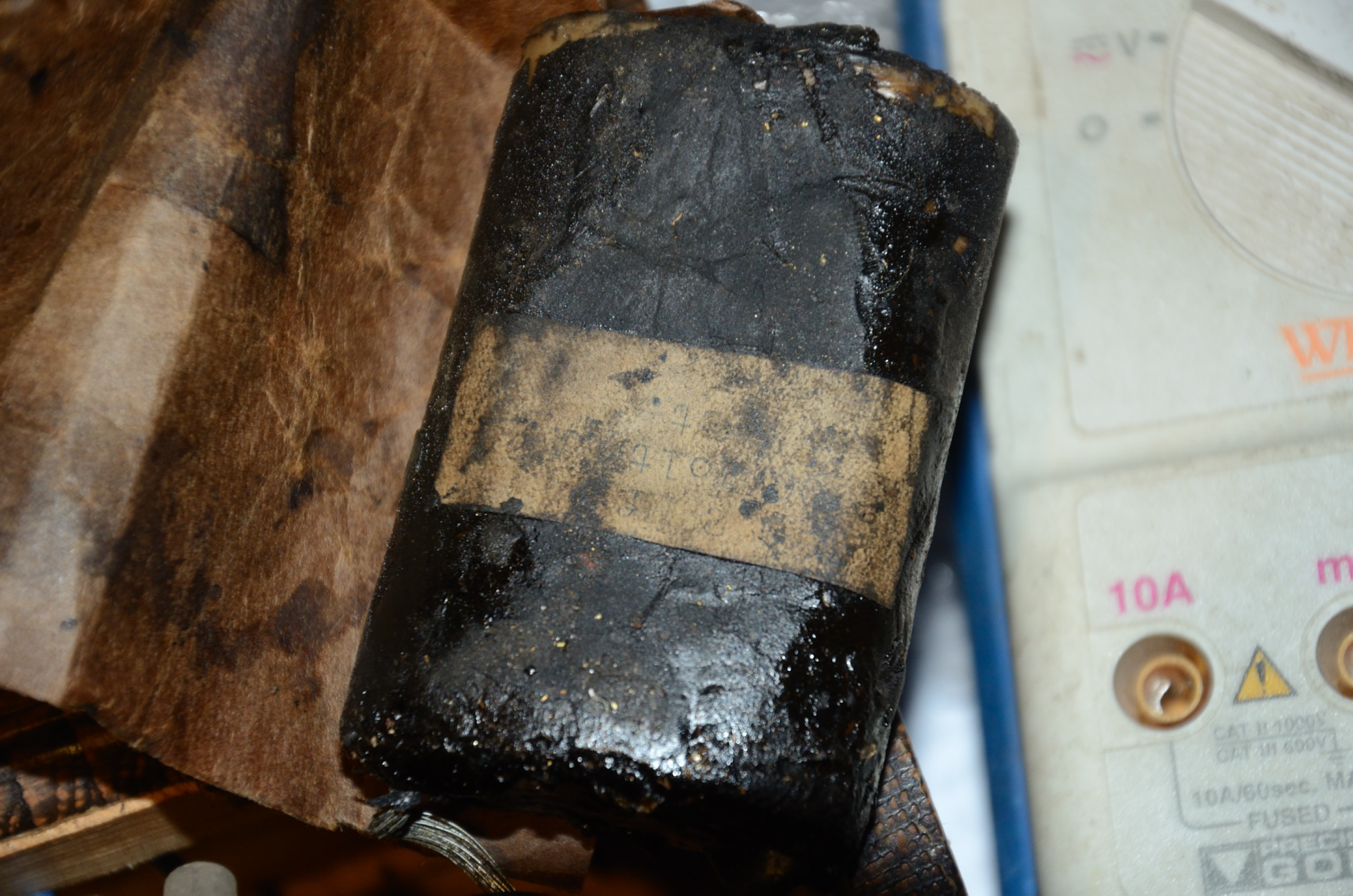

I need to test the cap too.

Img_20150728_4995 Img_20150728_4996 Img_20150728_4997

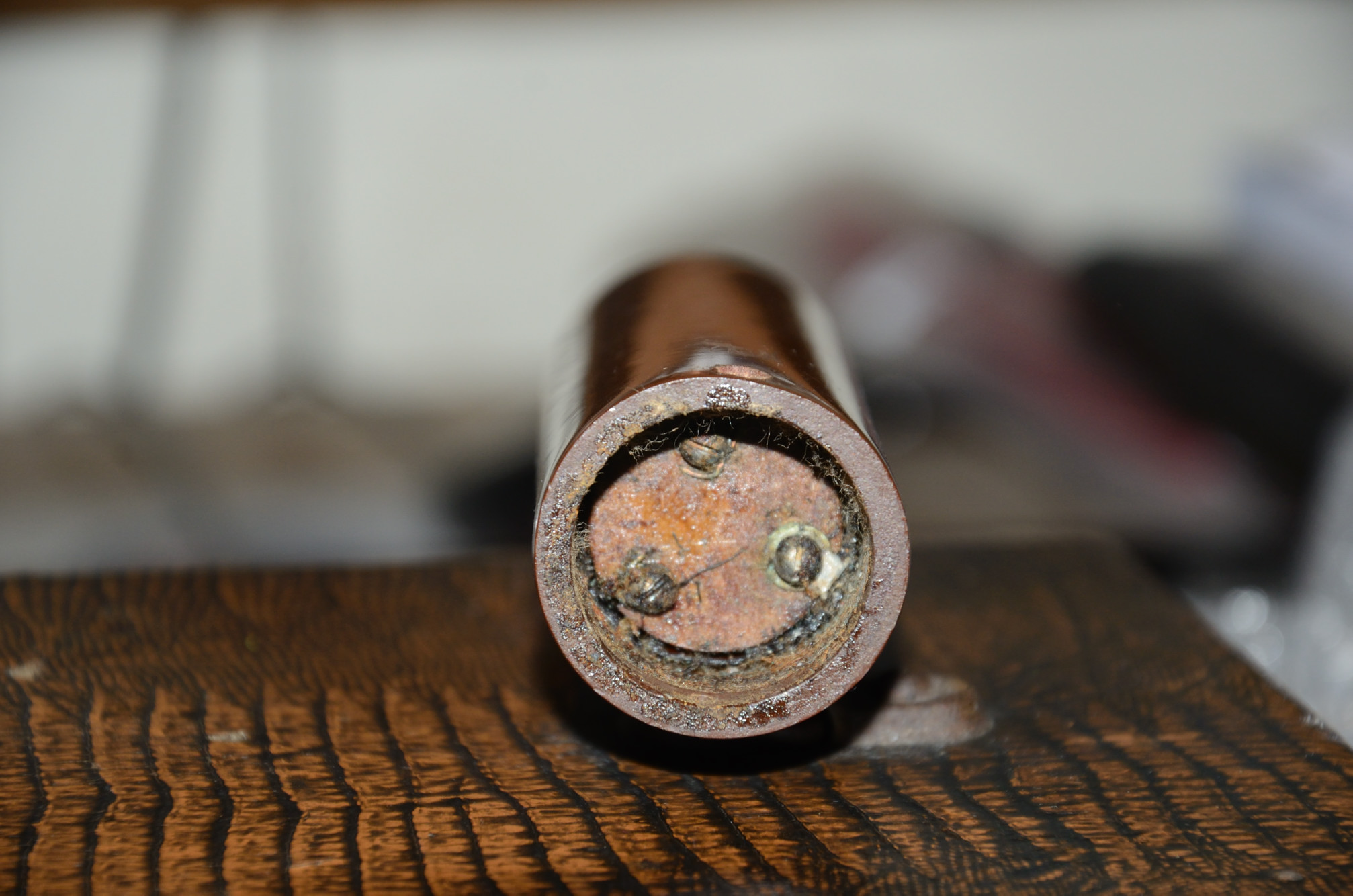

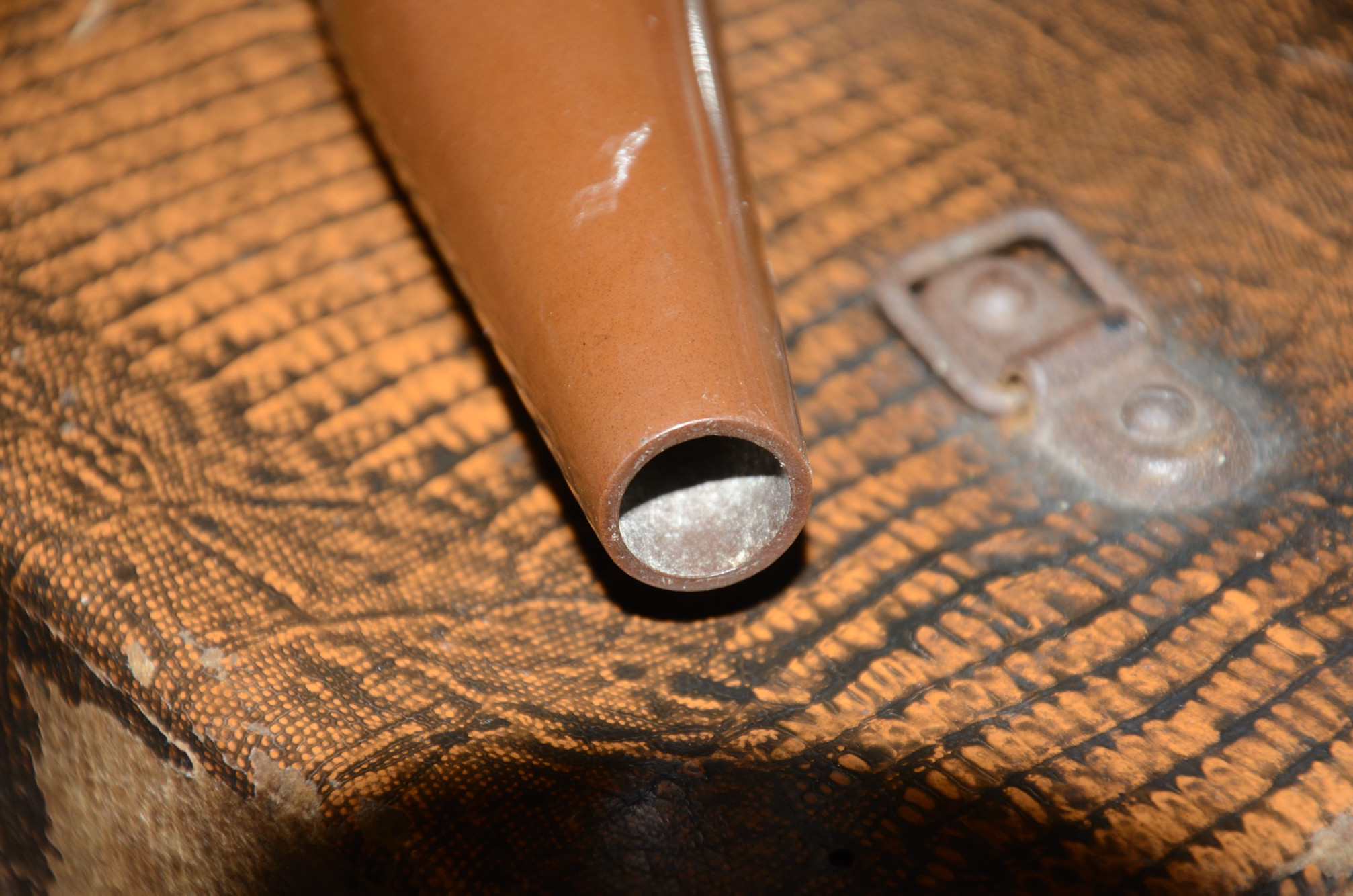

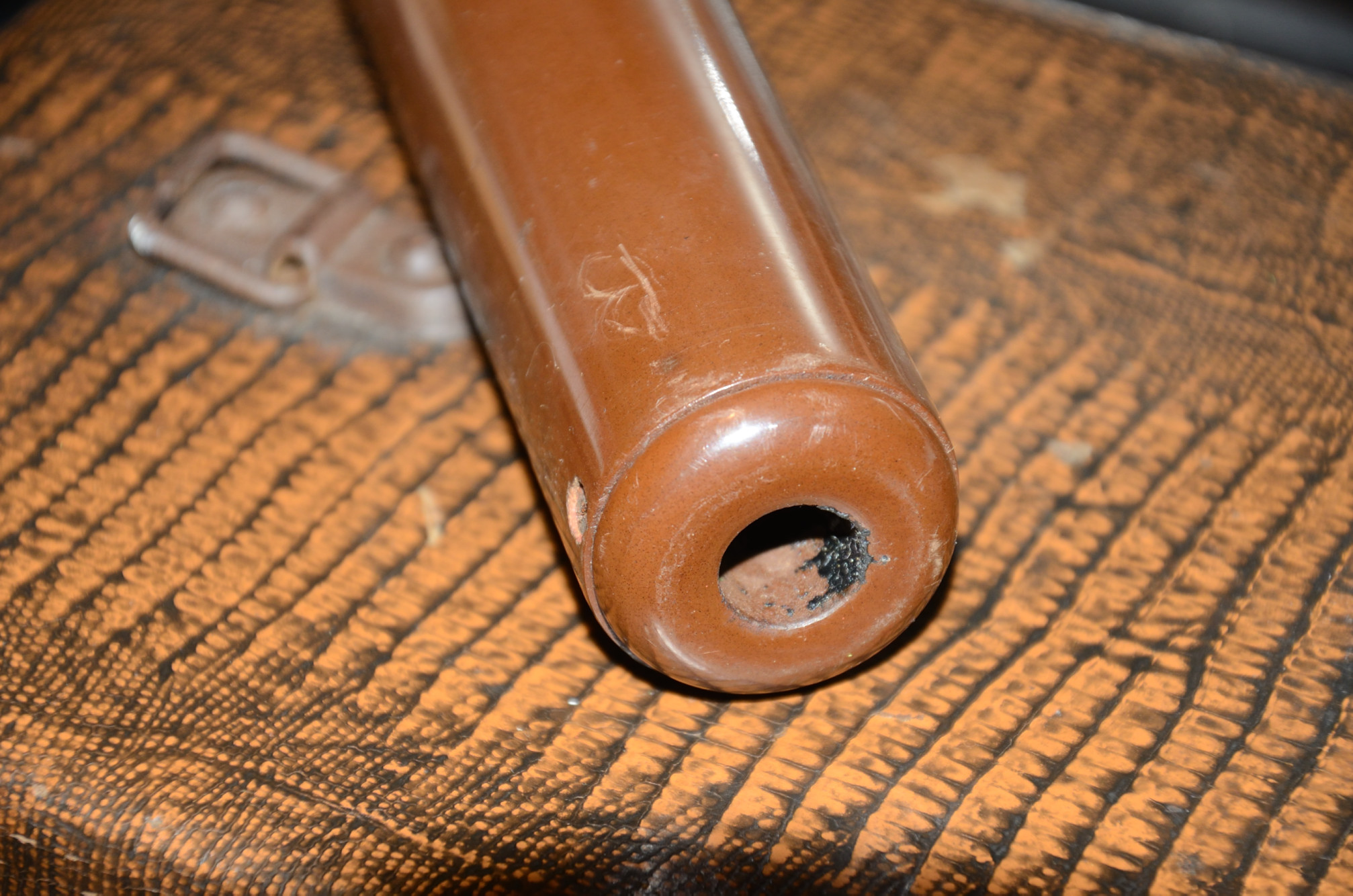

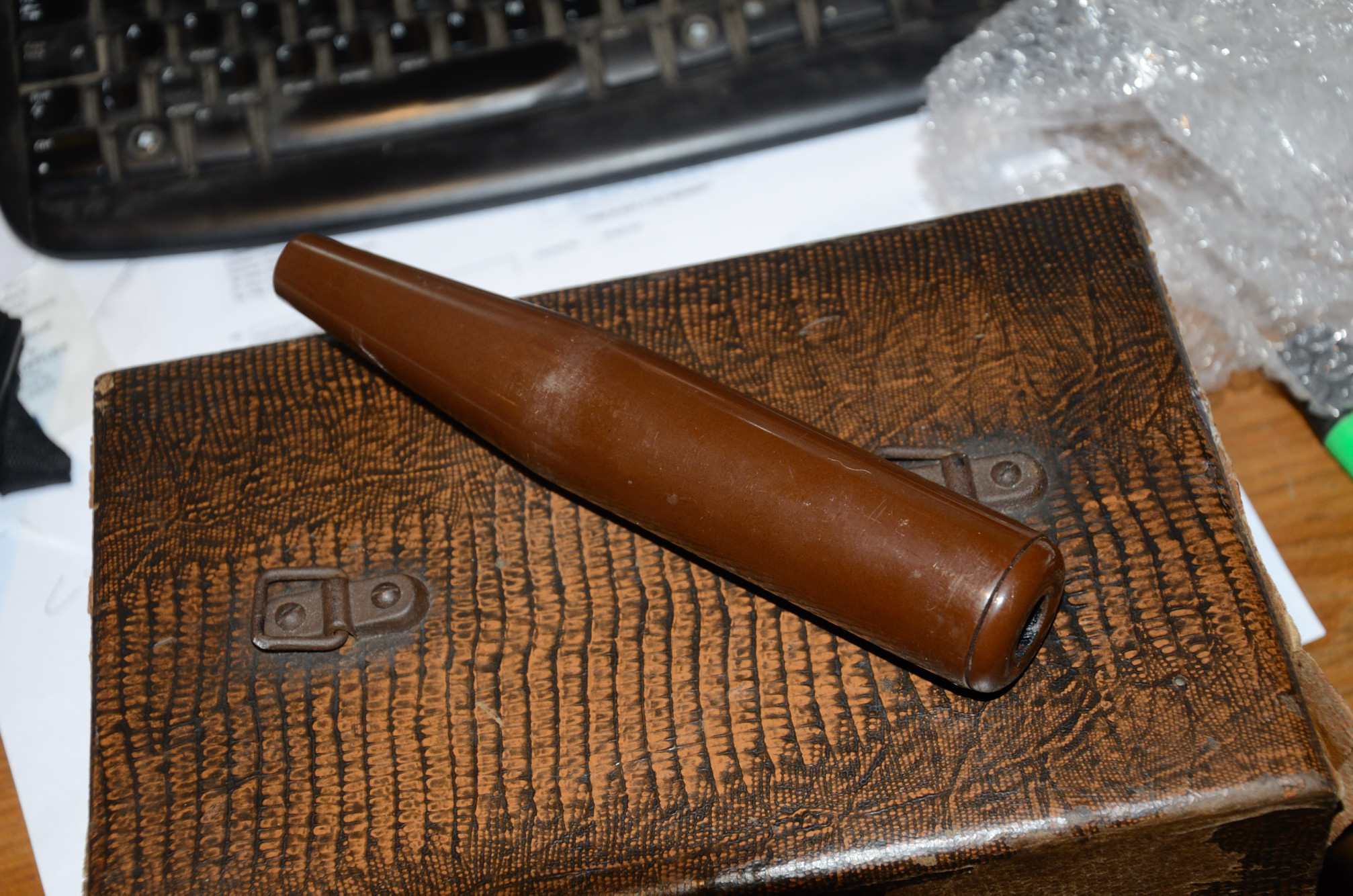

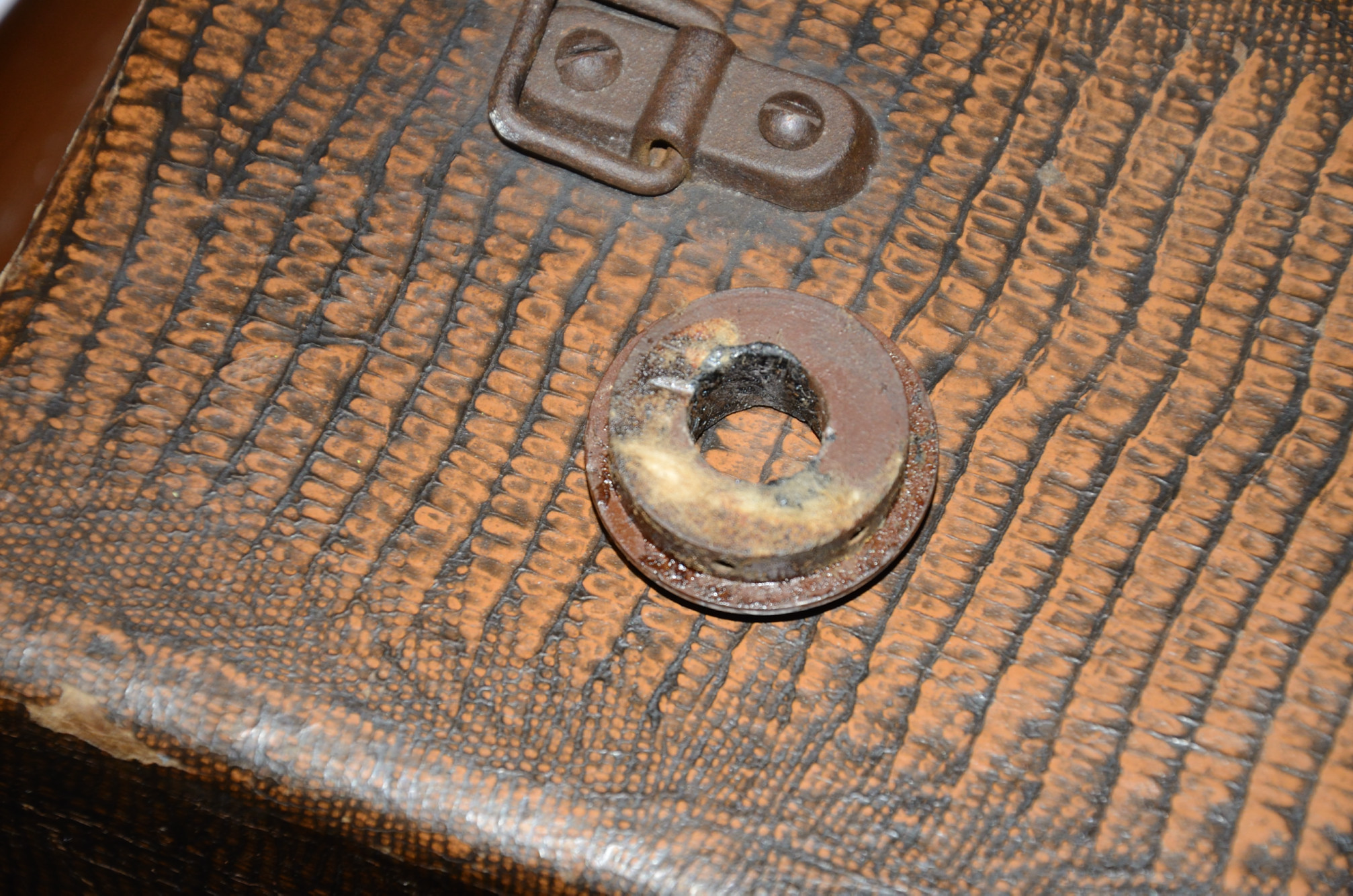

My biggest fear is the wand itself, the primary tests OK, but the secondary appears to be disconnected. Although it is common for the HV output to have a mica sheet and a pair of plates as an out-put cap. Unfortunately even with modest application of a hammer I can’t get the resonator out of the wand to take a better look.

Img_20150728_4982 Img_20150728_4981 Img_20150728_4979 Img_20150728_4978 Img_20150728_4977

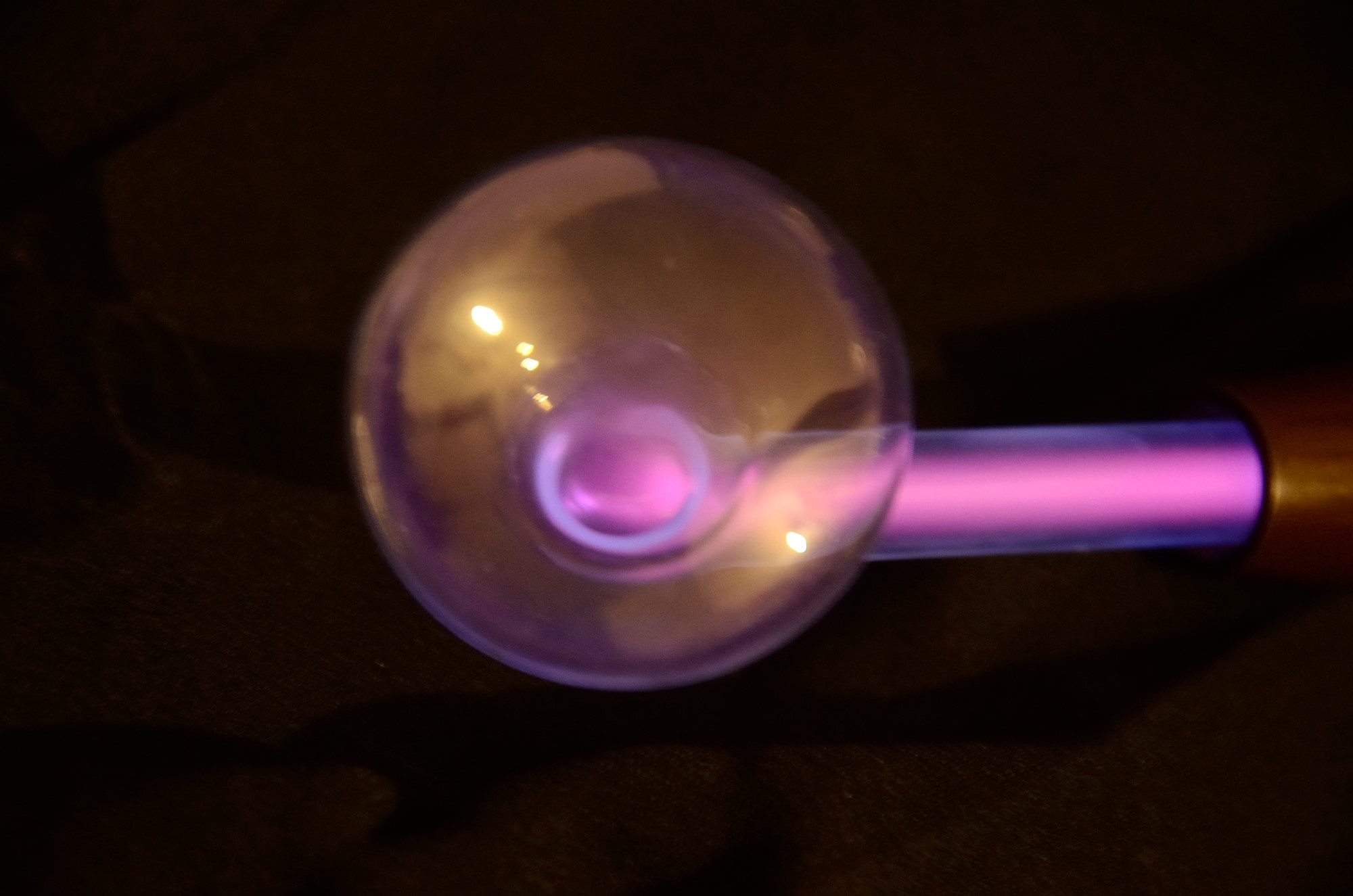

Temporally wired it up with the original internal rubber coated (mostly) wiring and against the odds, it still works.

violetwand1

It’s about as dangerous as it can get at the moment, I don’t know the state of the original cap and all of the internal wires need replacing. I’d also like a pair of period, cloth covered cables for the wand and power.

But its worth it, now I know it works.



So I need to re wire the device.

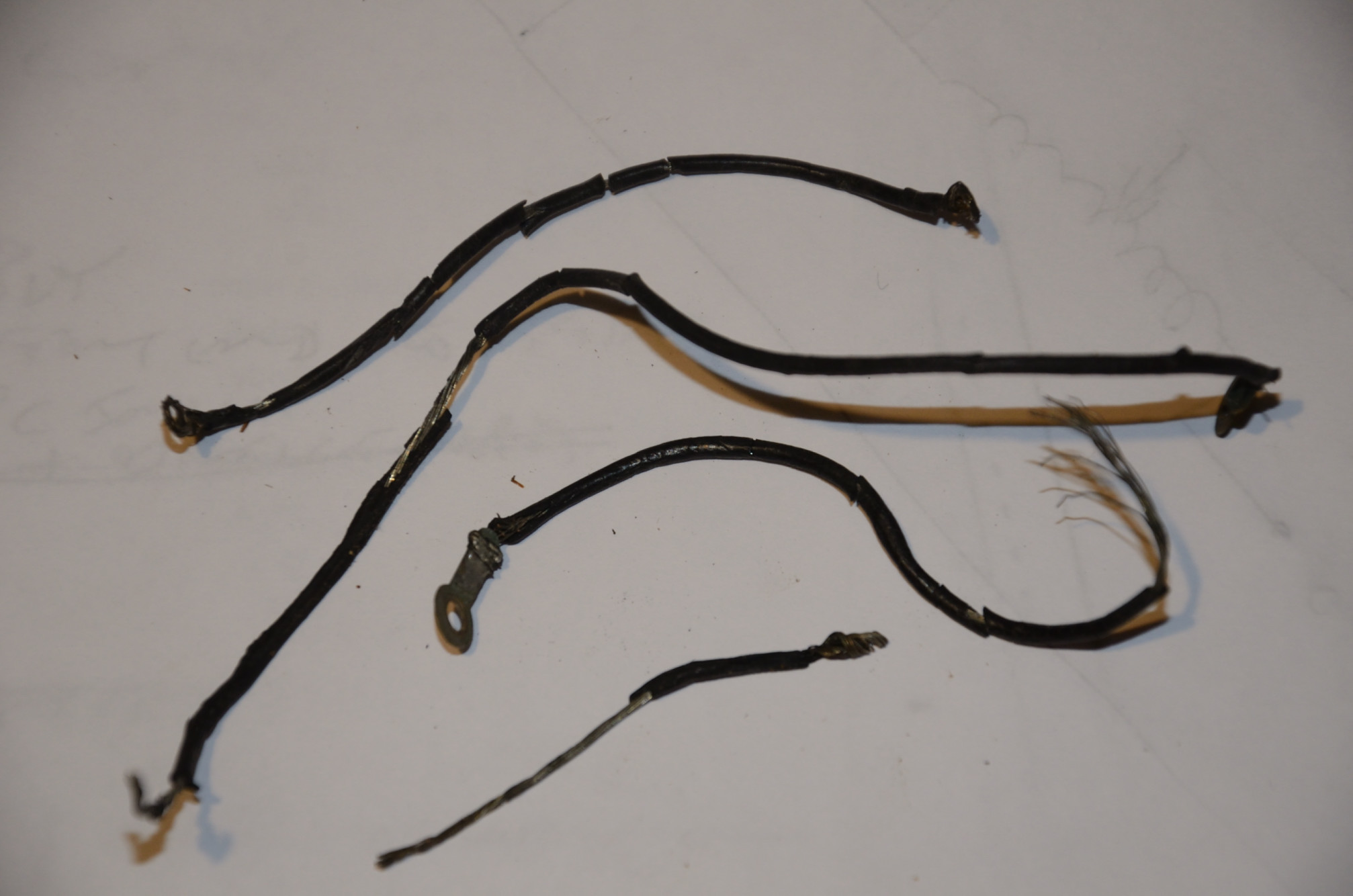

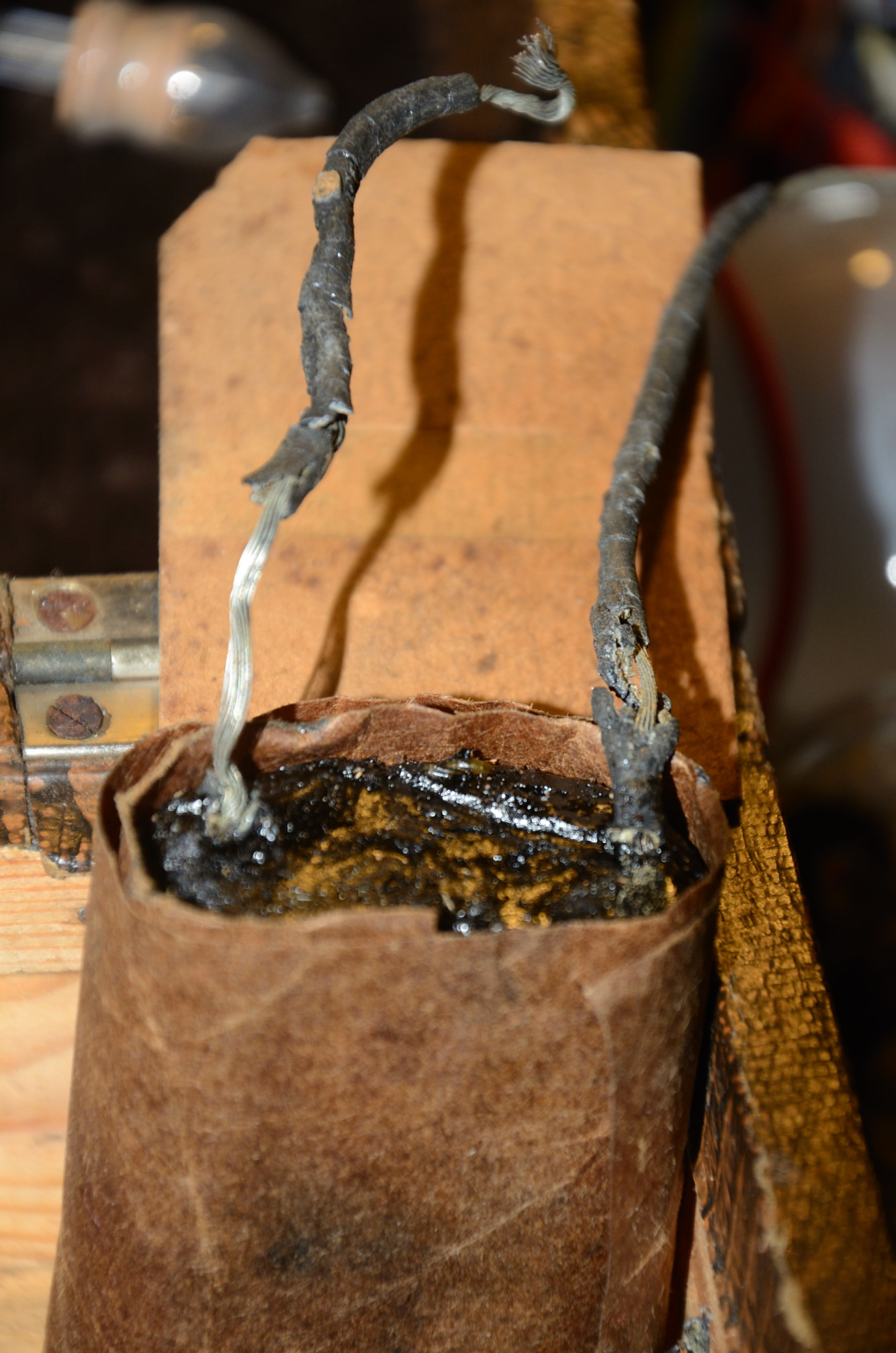

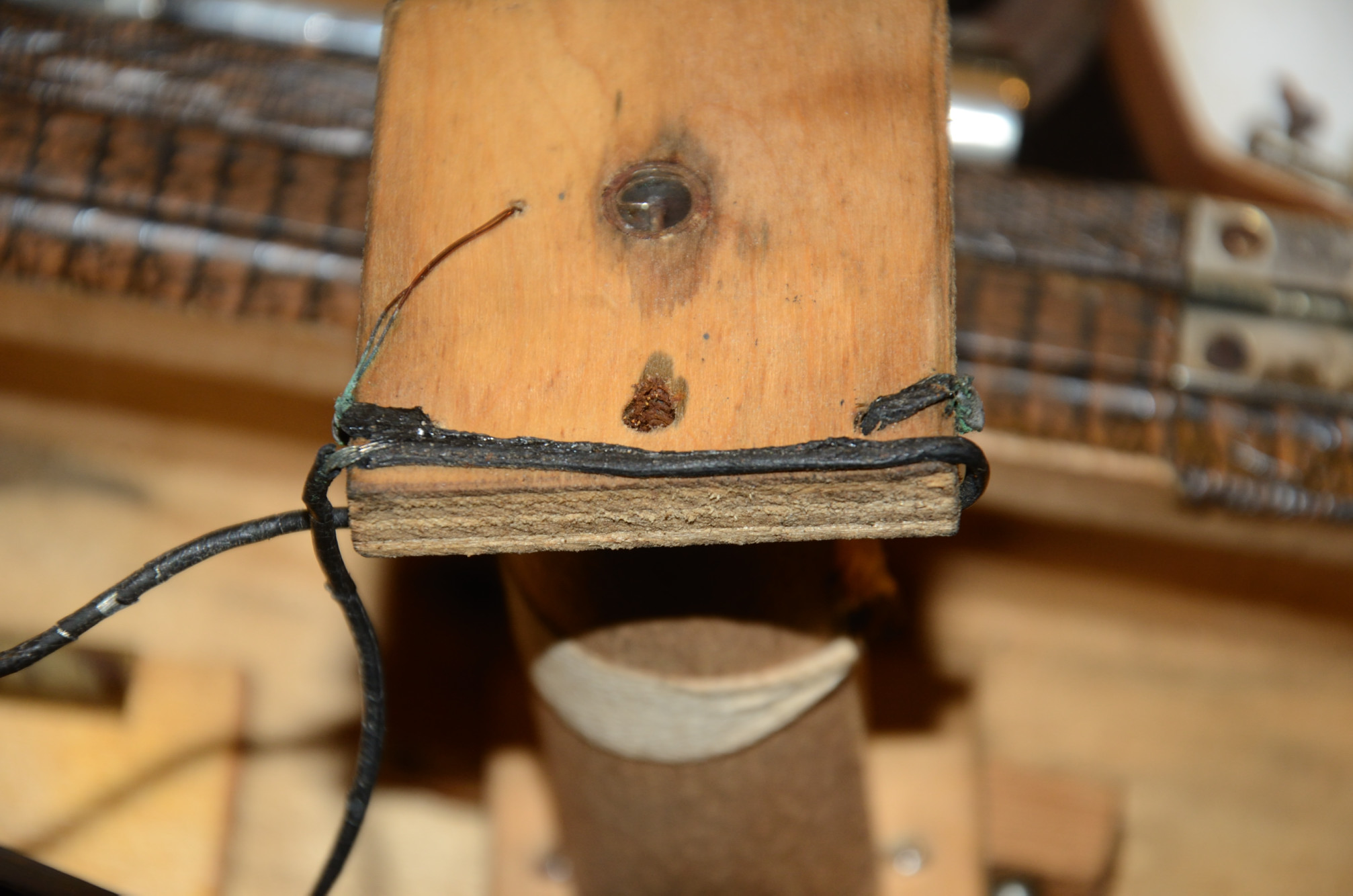

Taking it apart revealed some wiring issues

Img_20150730_5022 Img_20150730_5020 Img_20150730_5009

So I have replaced all of the old rubber insulated wires with new wire. The leads to the capacitor I didn’t want to disconnect, so I stripped off the rubber and sleeved the bare wires. All of the connections have been replaced with soldered tags, where before the wire was just wrapped around a brass screw and bolted down.

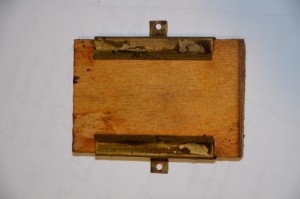

I also found a new bit

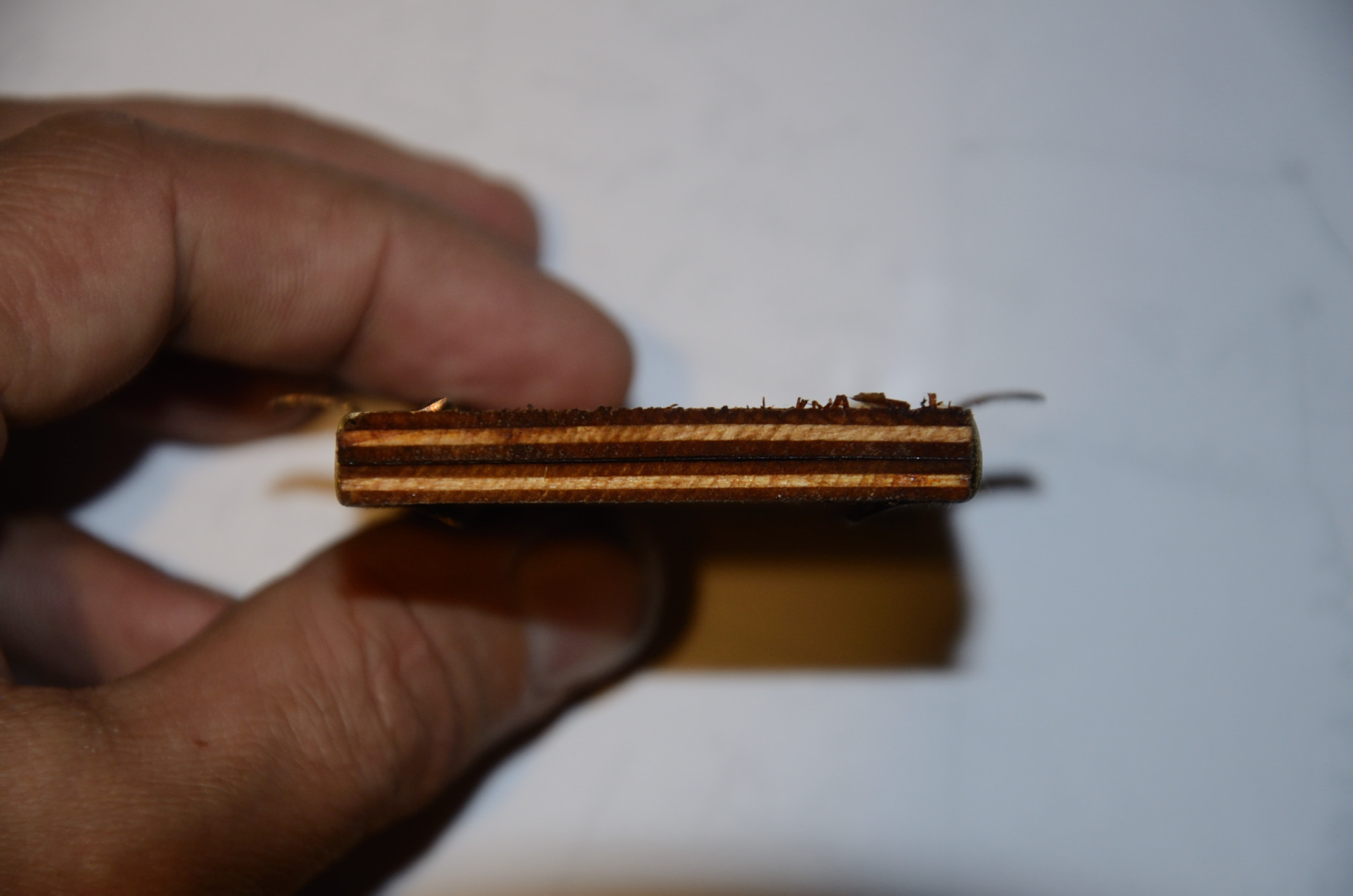

its two sheets of brass with a mica insulator making a HV capacitor. In lieu of an earth (when used in the US) this insulates the neutral so it can be used as an earth. Ill probably bypass this and use real earth.

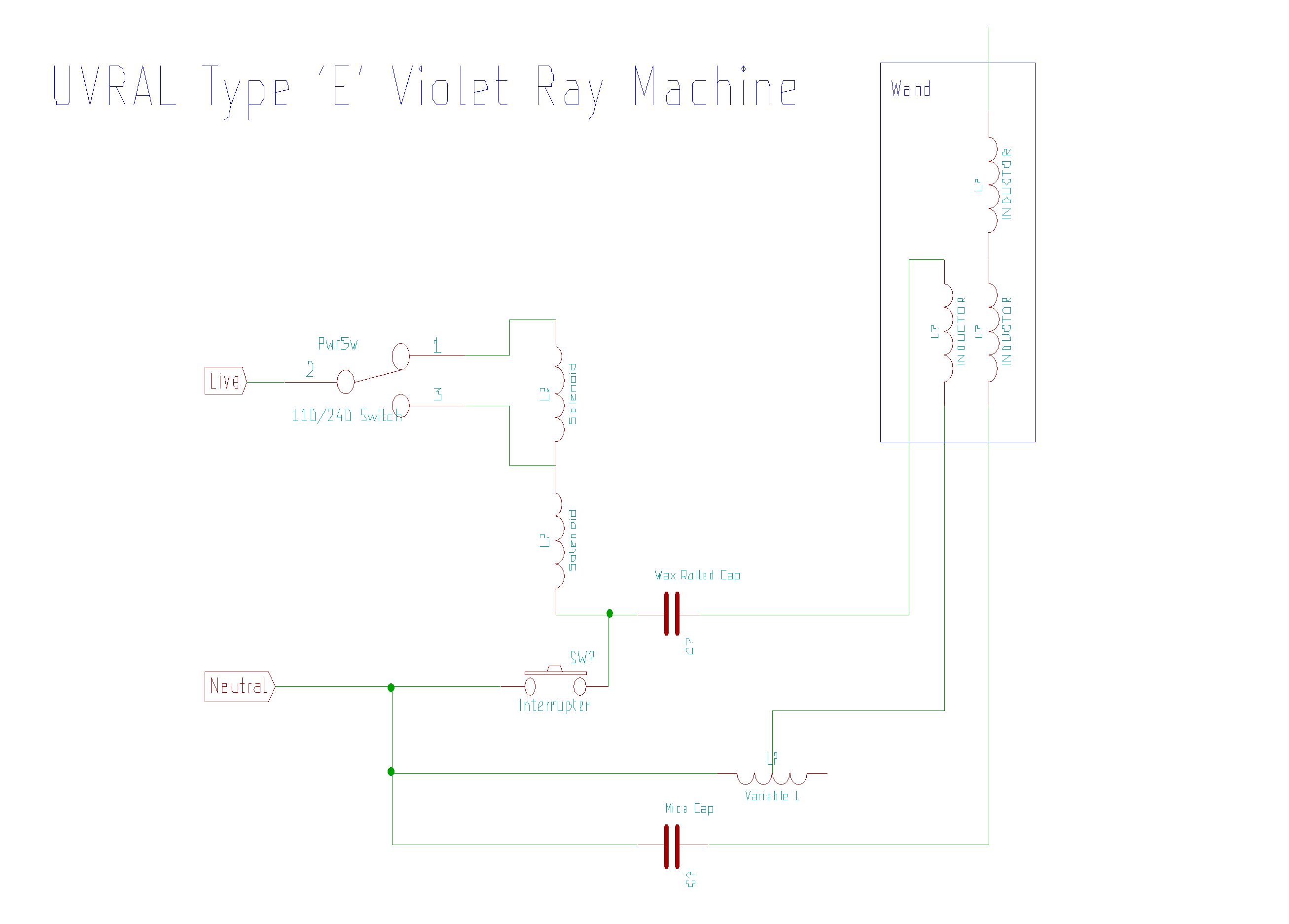

Circuit diagram

cct
