Conductive ink as a fuse



Equipment

Diagram

Conductive Ink Fuse

Method

Create your fuses by drawing a fuse shape onto a piece of card (I used an inkjet printer) then using the Conductive Ink pen, draw a fuse wire through the middle.

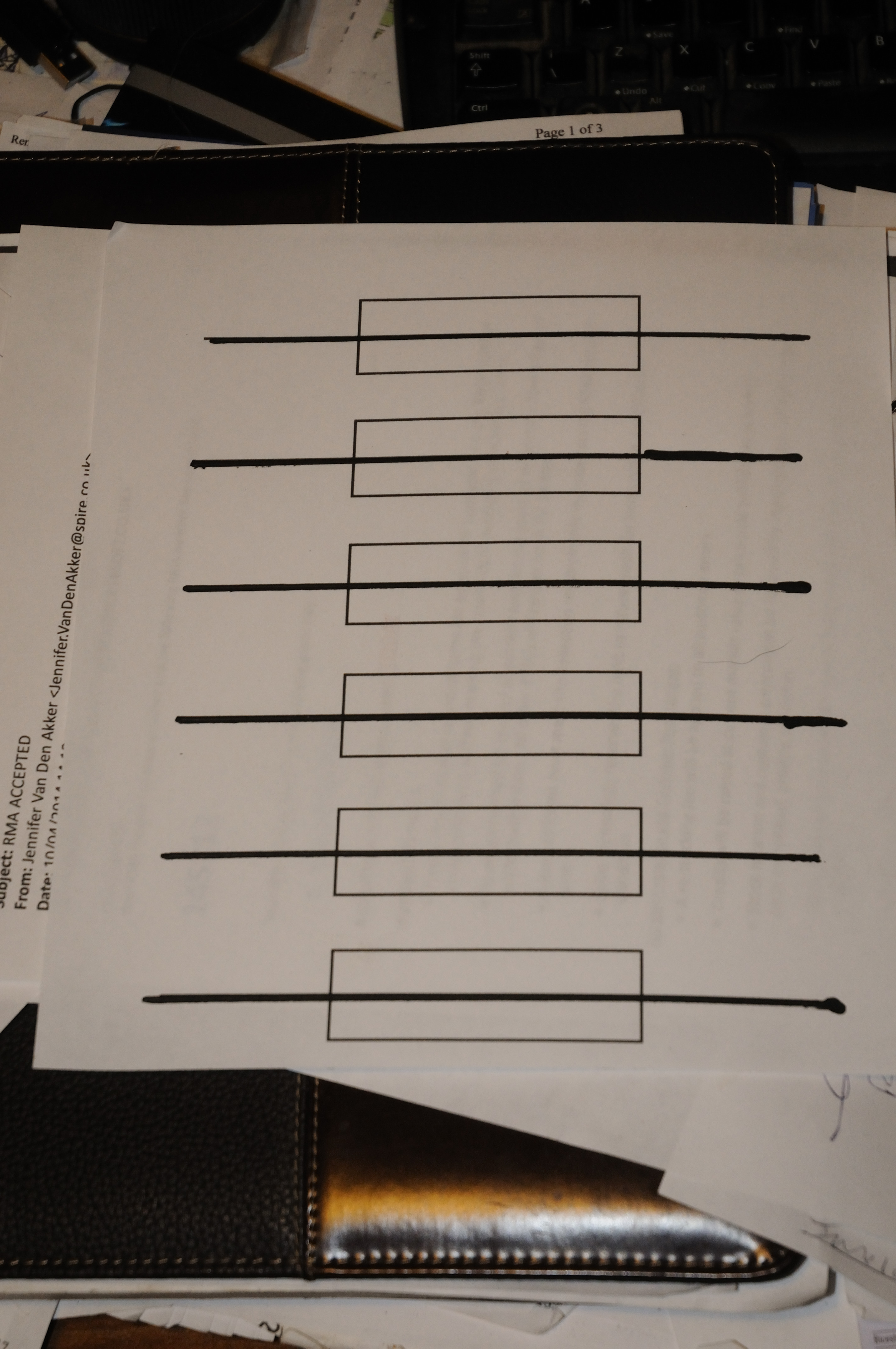

Img_20140426_1412

Connect as in Diagram above.

Use EXTREME CAUTION, the charge in the capacitor is LETHAL. After each run turn off the supply and short out the capacitor before touching any part of the circuit. Ensure all connections will not come loose during the run.

I used a car ignition coil and a 50KV string of diodes to charge my cap.

Let the HV supply charge up the capacitor and the spark gap will fire, dumping the stored charge from the cap into the “fuse”. Warning, it can be VERY loud and VERY Bright.

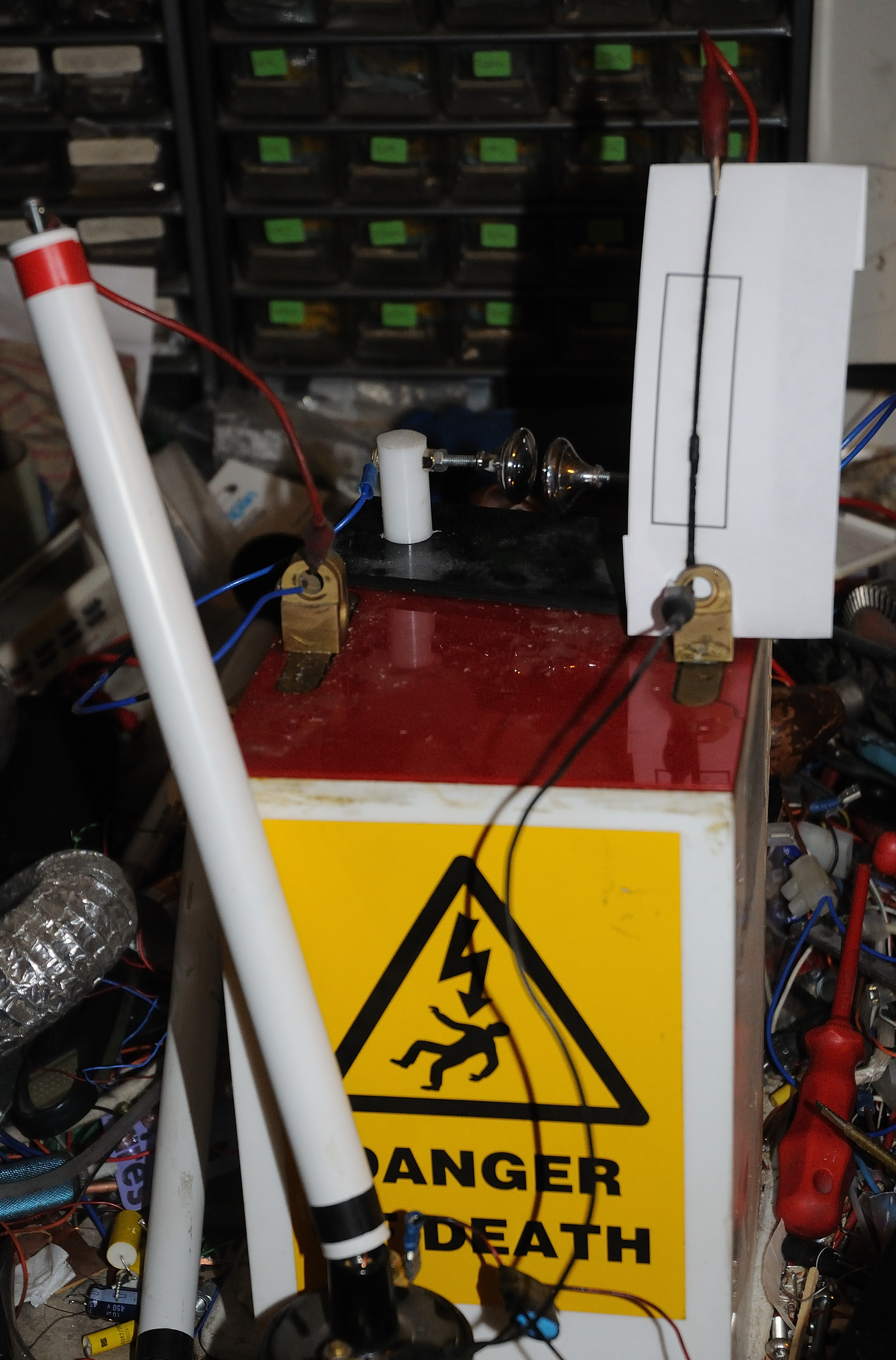

If for any reason the spark gap doesn’t fire, use the chicken stick to short out the cap and make the gap smaller.Img_20140426_1411

 Results

Img_20140426_1407fuseonly  Img_20140426_1404

The resultant arc is VERY bright, the photos above were taken at F29 on the slowest setting on my camera (well under ISO 50) and they are still white out.

The best thing is that the “fuse” can be blown many times, the discharge doesn’t take off all of the Ink and will keep going (total surprise)

Maybe I need a bigger Cap ?

After a suggestion to use welding goggle glass as a filter, a couple of better fuse photos

Still very bright, Camera was at F29 and on its slowest ISO setting (~iso50)

Img20140501_11736_01 Img20140501_11737_01
