Solid State Tesla Coil – Bridge

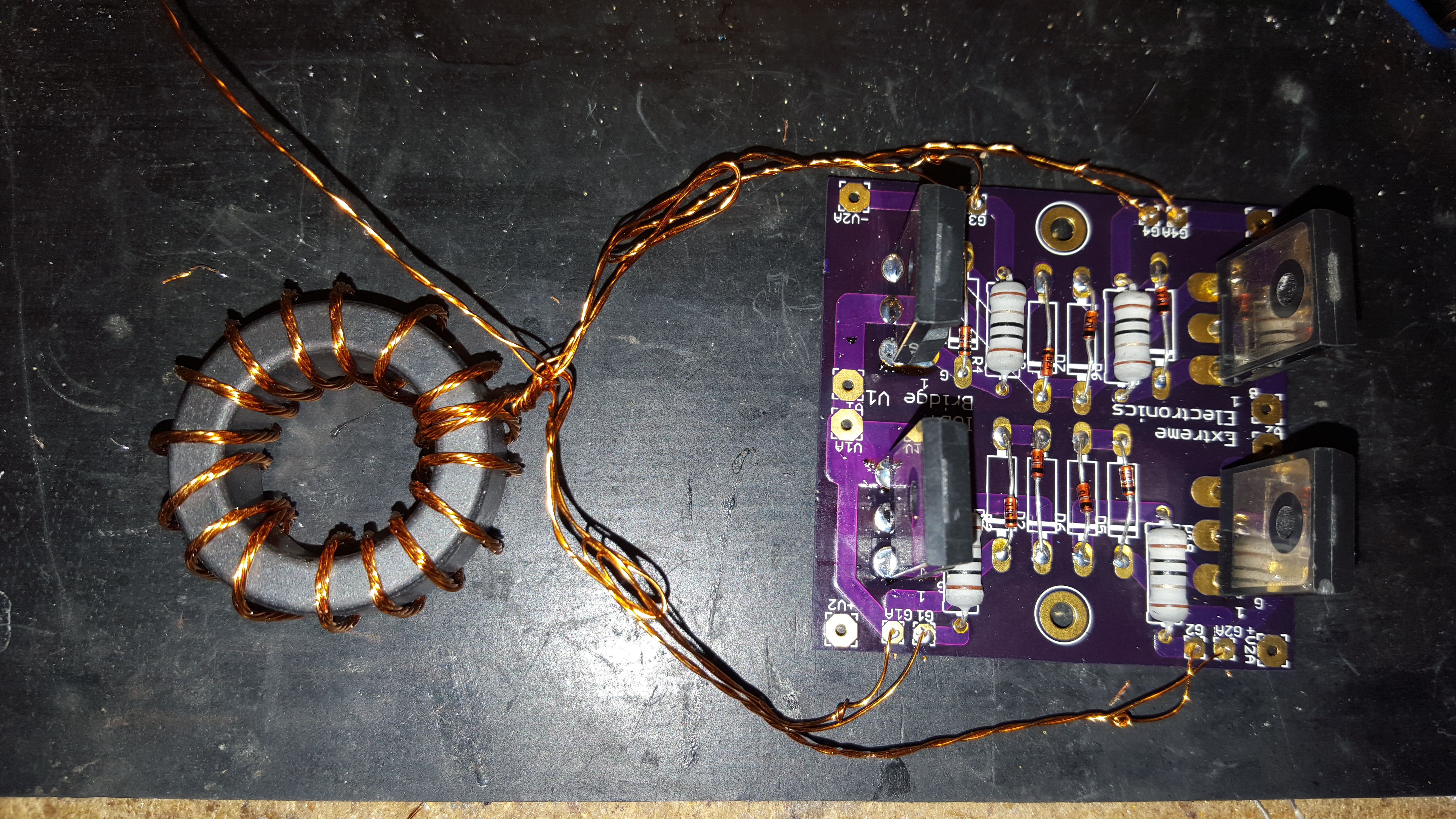

Full bridge PCB for Solid state Tesla coil, supports 4 x IGBT with gate resistors and zener diode clamps.

20160210_182740

Information on the gate drive transformer construction

PCB

IGBT Bridge V2



V2 Board is now available
Order from OSH Park



Current component list

4 x 4pf50wd
8 x BZX85 (15V zenners)
4 x 10R 1W resistors




Back to pizero tesla coil project main page
