Button Coin Cell charger

A small USB coin cell charger for 2032 series rechargeable batteries LIR2032 etc. Beware, not all 2032 button cells are rechargeable.

This project uses Lithium Button batteries, please note the warnings here – Do Not short out the batteries, and Do Not swallow them.

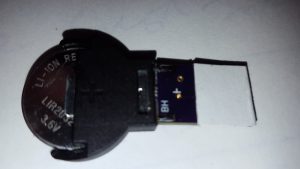

20160531_194655 20160531_194643

Order from OSH Park


33fa0bcabcc7aff0685d0704b106af41 82072cb5e8d168940a4fea90fc5c2d24

WARNING V1 & V2 Battery holder is the wrong way around. This should be sorted in V3

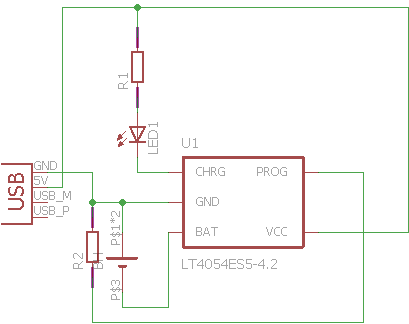

Circuit Diagram

Resistors are R1 – 1K and R2 – 333 Ohms for a charge rate of 35mA (check your battery specs)
IC is LIH7 or LTC4054

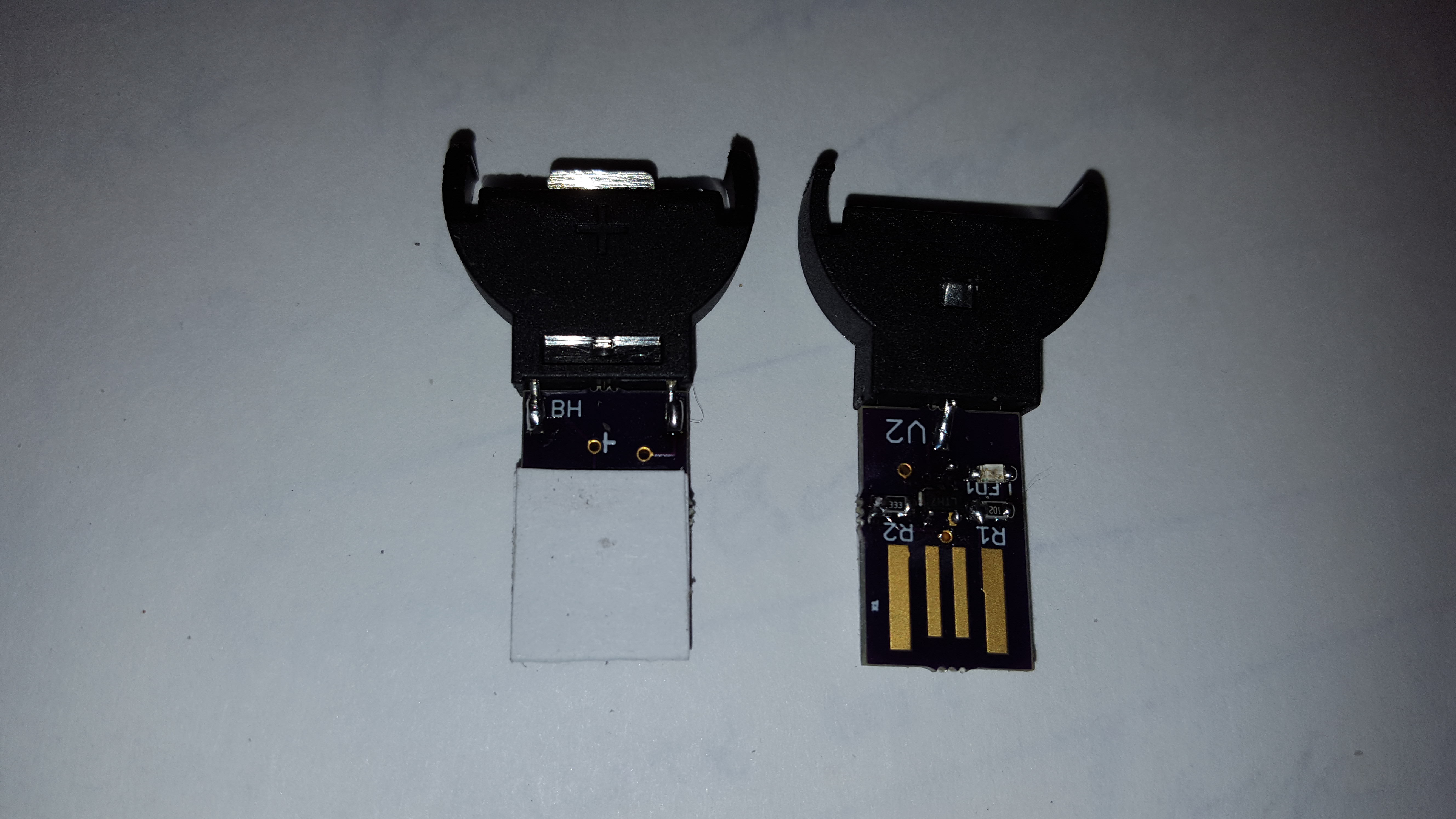

USB connector is made from PCB, but unfortunatly OSH park’s PCB’s are just slightly too thin, so a thick piece of card 0.5mm glued to the underside of the PCB takes up the slack in the USB socket.
